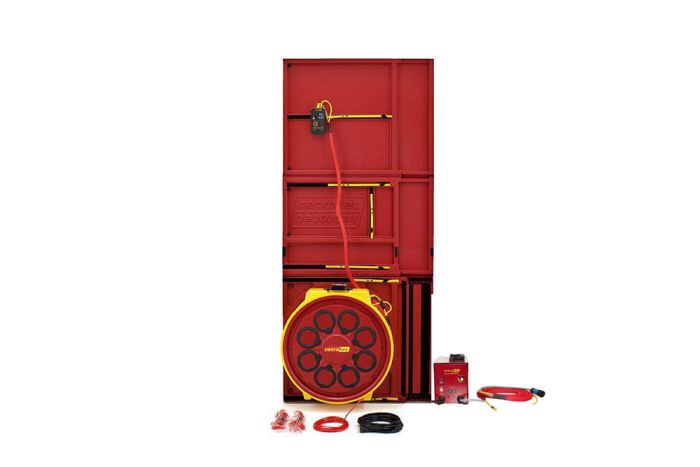

6120F - Hard Panel High Pressure Blower Door System

Double the power of any blower door.

$9,600.00

$9,600.00

In stock

SKU
6120F

* Required Fields

6120F - Hard Panel High Pressure
Blower Door System

Model 6120F with Hard Panel and DM32 WiFi does the same job as the 6100F, but with the added benefit of Modular Panels which are quick to setup and look very professional.

Includes fan case, tool case plus a large aluminum frame and cloth panel for tight enclosures.

Why Retrotec for Enclosure Integrity?

All Retrotec systems include tech support from Retrotec who originated the idea of Enclosure Integrity testing in 1984. They promoted it within NFPA and in 1986 wrote the first Enclosure Integrity standard. Retrotec has been the lead researcher for enclosure testing ever since.  Every major clean agent system manufacturer worldwide relies on Retrotec’s expertise for both hold time and peak pressure predictions.

1 x DM32 WiFi Digital Gauge Package

  • DM32 WiFi Dual Channel Color Touchscreen Manometer
  • USB Cable, 6' (1.8 m)
  • Cat5 Cable, 7' (2 m) Blue
  • DM32 USB Charging Module (120V/60Hz, 240V/50Hz, or 110V/50Hz)
  • DM32 Software Suite (Virtual Gauge, DM32 Configurator, Data Logger, and DM32 USB driver)
  • Gauge Case
  • DM32 Magnetic Clip
  • ISO17025 calibration of DM32
  • Gauge Calibration Verification Report

1 x 6000 Series Fan Set

  • 6000 Series Calibrated Fan (120V/60Hz, 240V/50Hz, or 110V/50Hz)
  • Range Ring A for 5000/6000 Series Fan
  • B8 Plate for 5000/6000 Series Fan
  • 8 x 4" Blank Plugs
  • Power Cord
  • 1 x Fan Cover
  • System Calibration Verification Report

1 x Hard Panel Set for 1000/2000/3000/5000/6000 Series Fan

1 x Blower Door Tubing Kit

4 x Roll of Grill Masks

1 x Umbilical for 1000/5000/6000 Series Fan, 7 ft (2 m)

Specifications below are for each individual fan.
Fan Model #: 6000


Flow Into:

CFM

litres/sec

m3/h

Maximum Flow*, per fan

Free Air

8,100

3,823

13,762

50 Pa

7,700

3,634

13,082

75 Pa

7,400

3,492

12,573

Minimum Flow:

-on optional Range B29



8.1

2

8

Dimensions:

26" × 25.5" × 9.5" (66 x 65 x 24 cm)

Weight:

36.3 lb (16.5 kg) or 38 lb (17.2 kg) with Ring A & Plated B8 installed

Flow Accuracy:

+/-5%

Power:

120V@60hz/22.0A or 240V@50hz/10.9A or 110V@50Hz/22.0A

Recommended Fan Calibration Interval:

5 years



Digital Gauge Model:

DM32 WiFi

Gauge Specs:

Click Here



Door Panel and Frame Model:

PN201

Type of Panel:

Hard Panel  - Single 1000/3000/5000/6000 Fan



* The max flow of the fan will vary depending on the following factors: Voltage, frequency, barometric pressure, back pressure, blade pitch, air temperature, bearing tightness, inlet air turbulence

* 5000/6000 series blower doors DO NOT work with the DM-2 digital gauge
