5100F - Fire System [Enclosure Integrity]

Includes the newly released DM32X Gauge

$6,325.00

$6,325.00

In stock

SKU
5100F

* Required Fields

Everything You Need For Entry Level Enclosure Integrity Testing

Test for hold times in flooded volumes up to 35,000 cu ft (1000 m3) for Inert agents and 70,000 cu ft (2000 m3) for halocarbon chemical agents.

This system will test the venting for a volume up to a maximum of 9,000 cu ft (250 m3) for Inert agents although vents up to 6 sq ft (0.6 m2) can be measured individually.

It also includes the newly released, industry changing DM32X gauge.

Request literature on all of Retrotec systems to determine the size of enclosures that can be tested with each system.Testing pressure relief vents will require more power.

Why Retrotec for Enclosure Integrity?

All Retrotec systems include tech support from Retrotec who originated the idea of Enclosure Integrity testing in 1984. They promoted it within NFPA and in 1986 wrote the first Enclosure Integrity standard. Retrotec has been the lead researcher for enclosure testing ever since.  Every major clean agent system manufacturer worldwide relies on Retrotec’s expertise for both hold time and peak pressure predictions.

1 x DM32X Gauge Package

  • DM32X Gauge (Newly Released! click here for details)
  • USB-C Charging Cable
  • Cat5 Cable
  • Gauge Case
  • DM32X Magnetic Clip
  • ISO17025 calibration of DM32X
  • Gauge Calibration Verification Report
1 x 5000 Series Fan Set
  • 5000 Series Calibrated Fan (120V/60Hz, 240V/50Hz, or 110V/50Hz)
  • Range Ring A for 5000/6000 Series Fan
  • B8 Plate for 5000/6000 Series Fan
  • 8 x 4" Blank Plugs
  • Ranges 74,47 and 29
  • Power Cord
  • 1 x Fan Cover
  • System Calibration Verification Report

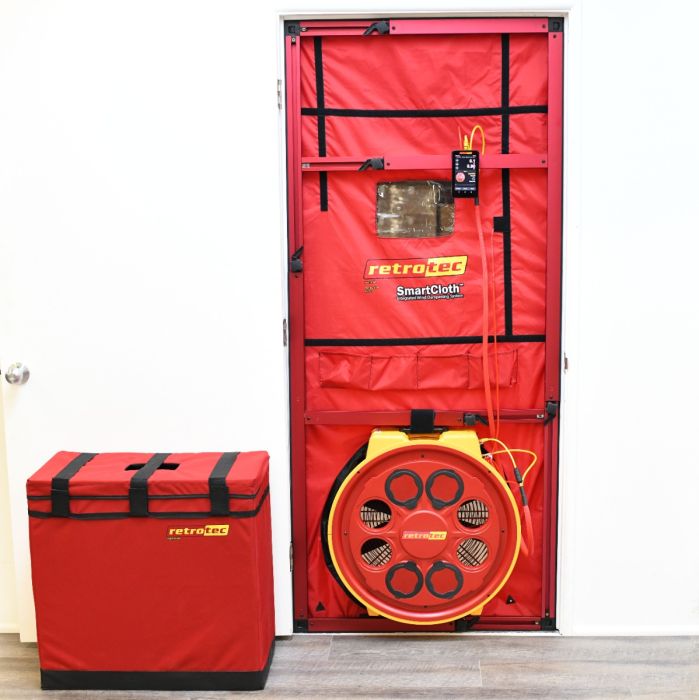

1 x SmartCloth Door Panel & Frame (new)  - Single Fan
  • Aluminum Frame, Red Anodized
  • SmartCloth for 1000/2000/3000/5000/6000 Series Fan, Regular Height
  • Fan Crossbar Strap for Aluminum Frame
  • Case for Aluminum Frame
  • **Optional: 50" Large Aluminum Frame Offered At Additional Cost**
1 x Case for System Accessories

1 x Fan Case

Digital Gauge Model:

DM32X

Gauge Specs:

Click Here

Door Panel and Frame Model:

AL250

Type of Panel:

SmartCloth Panel & Frame – Single 1000/3000/5000/6000 Fan

Type of Frame:

Regular Sized Red Anodized Frame

Collapsed:

27 1/8” X 53 3/8” (68.9cm X 135.6cm)

Expanded:

43 5/8” X 97 ½” (110.8cm X 247.6cm)

Frame Thickness:

1.75” (5.3 cm)

Weight:

16 lbs (7.3 kg)

* The max flow of the fan will vary depending on the following factors: Voltage, frequency, barometric pressure, back pressure, blade pitch, air temperature, bearing tightness, inlet air turbulence

* 5000/6000 series blower doors DO NOT work with the DM-2 digital gauge
