350 - DucTester System

Most advanced residential/commercial duct tester for Europe.

Request a Quote

In stock

SKU
350

* Required Fields

Model 350x European DucTester

The 350x includes even more improvements from the former Model 350. Mount your DM32 WiFi Gauge directly onto the shell for easy accessibility. A new foot design allows for a secure, sturdy base.

Maneuver this incredibly light DucTester for numerous testing applications. Test the leakiest to the tightest duct system. The complete package to start residential duct testing. Includes multiple flow ranges for high to low flow testing.

Package also includes a DM32 WiFi gauge, a roll of Grill Mask to seal registers, and & Large Carrying Case.

Super lightweight, easy operation, great quick guides make this the best choice for testing European ducts.

Who uses it?

  • Energy Auditors, HVAC Contractors, Building Contractors & Remodelers, Home Inspectors

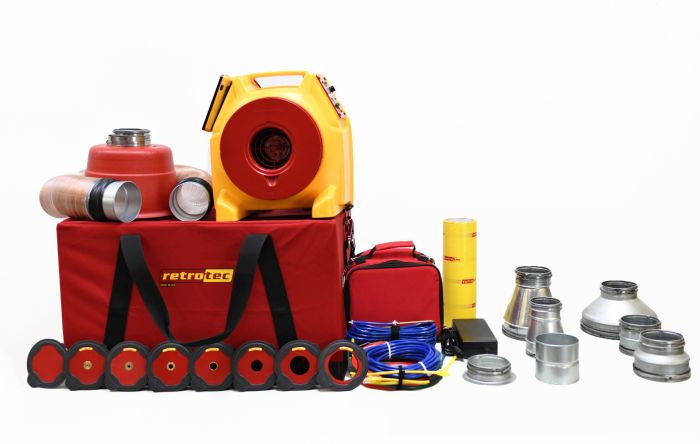

1 x DM32 WiFi Digital Gauge Package

  • DM32 WiFi Dual Channel Color Touchscreen Manometer
  • USB Cable, 6' (1.8 m)
  • Cat5 Cable, 7' (2 m) Blue
  • DM32 USB Charging Module (120V/60Hz, 240V/50Hz, or 110V/50Hz)
  • DM32 Software Suite (Virtual Gauge, DM32 Configurator, Data Logger, and DM32 USB driver)
  • Gauge Case
  • DM32 Magnetic Clip
  • ISO17025 calibration of DM32
  • Gauge Calibration Verification Report

1 x 300 Series Fan Set

  • 300 Series Fan
  • DC Power Supply for 300 Series Fan
  • 300 Series Fan Power Cord With Plug
  • Control Panel for 300 Series Fan
  • End Plate 300 - Range 102
  • Calibration of Fan
  • Calibration Certificate

1 x 350 DucTester Set of Range Plugs

  • 4" Plug - Range 74
  • 4" Plug - Range 47
  • 4" Plug - Range 29
  • 4" Plug - Range 18
  • 4" Plug - Range 11
  • 4" Plug - Range 7
  • 4" Plug - Range 3
  • 4" Plug - Blank

1 x DucTester Accessory Kit (Europe)

  • Large Deluxe Tool Case
  • 10” (250 mm) to 4” (100 mm) Reducer
  • 2 x 4" (100 mm) Clamps for Flex Duct
  • 12 Ft (4 m) long 4" (100mm) Flex Duct
  • 90 Degree Elbow, 4"
  • 200 mm to 100 mm Reducer
  • 160 mm to 100 mm Reducer
  • 125 mm to 100 mm Reducer
  • 100 mm to 80 mm Reducer
  • 100 mm male and female clamp

1 x DucTester Tubing Kit

1 x Umbilical for DucTester, 7 ft (2 m)

1 x Duct Leakage Test Report Generator Software

1 x Quick Connect Collar

Grill Mask

Fan Model #



350x





Flow Into:

CFM

liters/sec

m3/h

Maximum Flow, CFM

Free Air

803

379

1365

25 Pa

783

370

1331

Minimum Flow

Range 102

174.4

82.3

296.3

Range 74

30.1

14.2

51.1

Range 47

11.3

5.3

19.1

Range 29

5.2

2.4

8.7

Range 18

3.2

1.5

5.5



Range 11

TBD

TBD

TBD

Dimensions

14" × 12.5" × 14.5" (35.5 x 32 x 37 cm)

Weight

12 lb (5.5 kg)

Flow Accuracy

+/-3% ISO 17025 accredited certificate available

Power Supply

Input: 120V/60Hz, 240V/50Hz, or 110V/50Hz

Output: 48V DC/ 3.31A

Power Output

0.213 hp, 159 Watts

Maximum Fan Calibration Interval

Every 5 years or sooner depending on standard

Digital Gauge Model

DM32



* The max flow of the fan will vary depending on the following factors:
 barometric pressure, back pressure, blade pitch, air temperature, bearing tightness, inlet air turbulence, length of flex duct
