4210 Contra System

Request a Quote
In stock
SKU
4210

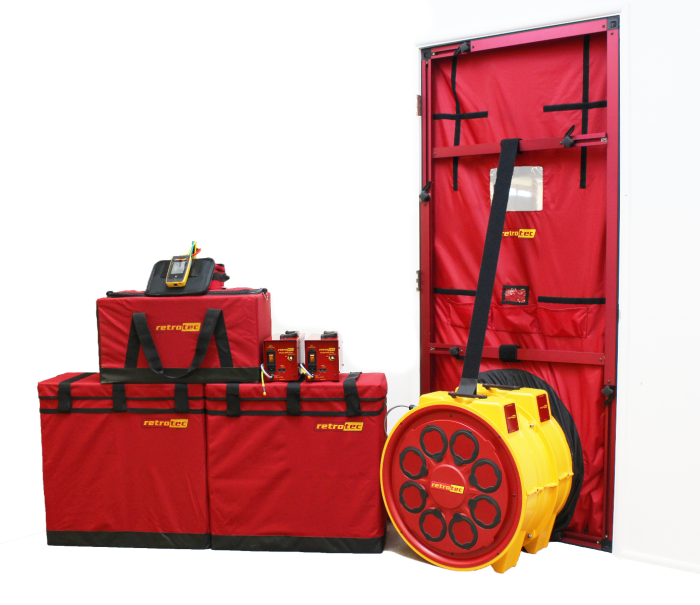

The Model 4200 Contra System has two Model 6000 Fans running in series but in opposite directions. Used primarily as a duct tester it can also be engaged to test larger enclosures when you add a Large Door Frame and high pressure cloth.

The Model 4200 runs two 1.5 hp fans in the contra mode where the fans are in series but create flow with contra rotating blades revolving in opposite directions. House testing fans fall off dramatically at 100 Pa and only blow about 100 CFM at 500 Pa whereas the 4200 Contra puts out 5,000 CFM at that pressure.

Ideal for research projects where high flow at high pressure is needed for testing building components such as wall sections, mockup, roofs, doors, windows or pressure vents. ISO standards where testing in both directions is required at 300 Pa is ideal for this Series.

1 x DM32 WiFi Digital Gauge Package

  • DM32 WiFi Dual Channel Color Touchscreen Manometer
  • USB Cable, 6' (1.8 m)
  • Cat5 Cable, 7' (2 m) Blue
  • DM32 USB Charging Module (120V/60Hz, 240V/50Hz, or 110V/50Hz)
  • Gauge Case
  • DM32 Magnetic Clip
  • ISO17025 calibration of DM32
  • Gauge Calibration Verification Report

1 x 6000 Series Fan Set

  • 6000 Series Fan (calibrated)
  • High Power Drive for 6000 Series Fan (120V/60Hz, 240V/50Hz, or 110V/50Hz)
  • Range Ring A for 5000/6000 Series Fan
  • B8 Plate for 5000/6000 Series Fan
  • 8 x 4" Blank Plugs
  • 2 x Fan Cover
  • ISO 17025 accredited fan calibration
  • System Calibration Verification Report

1 x 4000 Series Fan Set

  • 4000 Series Fan
  • High Power Drive for 6000 Series Fan (120V/60Hz, 240V/50Hz, or 110V/50Hz)

1 x Large High Pressure Cloth Door Panel & Frame - Single Fan

  • Large 50" Aluminum Frame
  • Large #5 Crossbar
  • 3 x Fan Crossbar Strap for Aluminum Frame
  • High Pressure Cloth for Large 50" Aluminum Frame
  • Large Roll Up Cloth Case
  • 2 x Large #6 Crossbar

1 x Fan Crossbar Strap for 4000 Series Contra Fan for Aluminum Frame

1 x 4000 Series Fan Connector Kit with Instruction

1 x Control Cable for Digital Fan - 1ft (.3m)

1 x Case for System Accessories

2 x Fan Case

1 x Blue Tube 35ft (11m) 1/8in ID

1 x Umbilical for 1000/5000/6000 Series Fan, 7 ft (2 m)



Fan Model # 4000
  Flow Into: CFM M3/h
Maximum Flow: 250 Pa 7,361 12,514
  500 Pa 5,302 9,013
Minimum Flow:   249 423
Weight: 36.3 lb (16.5 kg) or 38 lb (17.2 kg) with Ring A & Plated B8 installed
Dimensinons: 26" × 25.5" × 19" (66 x 65 x 48 cm)
Power:

120V@60hz/22.0A or
240V@50hz/10.9A or
110V@50Hz/22.0A x 2 for two fans





Digital Gauge Model:

DM32 WiFi

Gauge Specs:

Click Here



Door Panel and Frame Model:

AL260

Type of Panel:

Regular Cloth Panel & Frame – Single 1000/3000/5000/6000 Fan

Type of Frame:

Regular Sized Red Anodized Frame

Collapsed:

27 1/8” X 53 3/8” (68.9cm X 135.6cm)

Expanded:

43 5/8” X 97 ½” (110.8cm X 247.6cm)

Frame Thickness:

1.75” (5.3 cm)

Weight:

16 lbs (7.3 kg)



* The max flow of the fan will vary depending on the following factors: Voltage, frequency, barometric pressure, back pressure, blade pitch, air temperature, bearing tightness, inlet air turbulence



* 5000/6000 series blower doors DO NOT work with the DM-2 digital gauge
