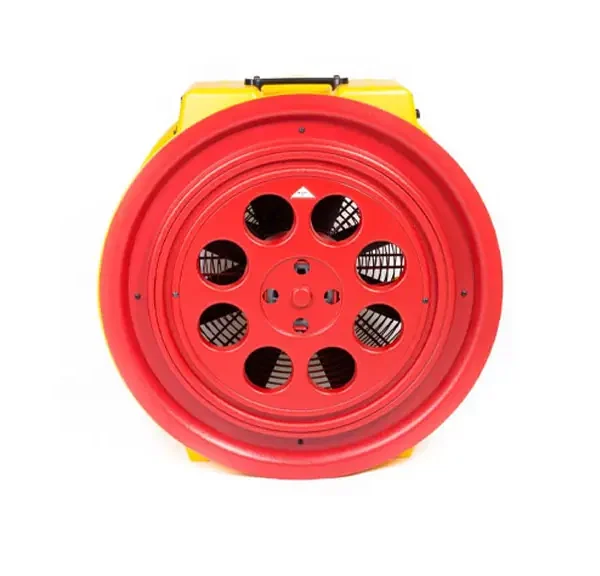

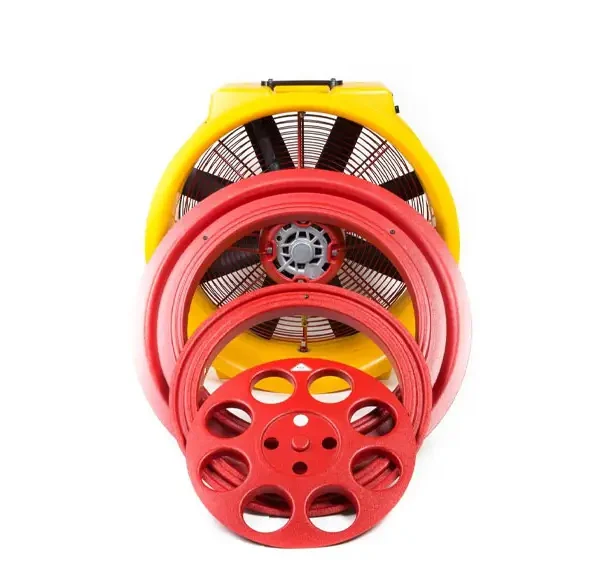

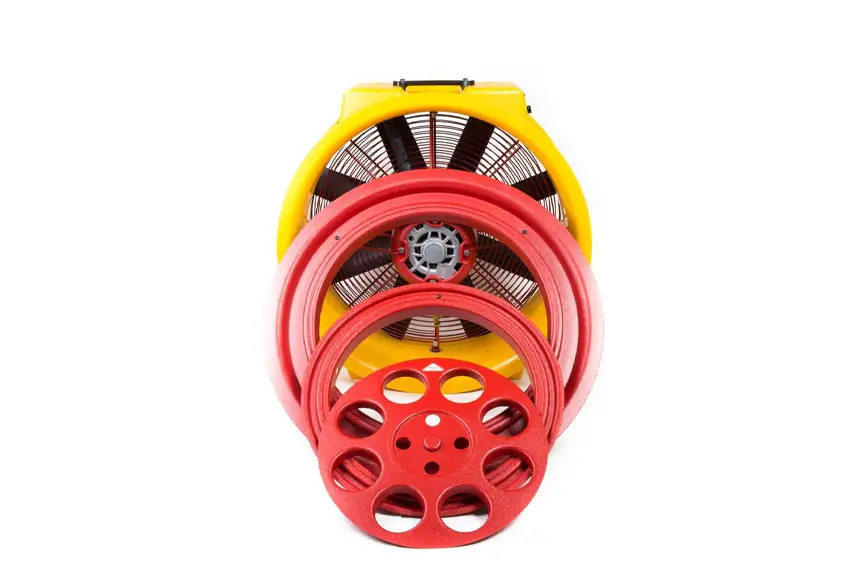

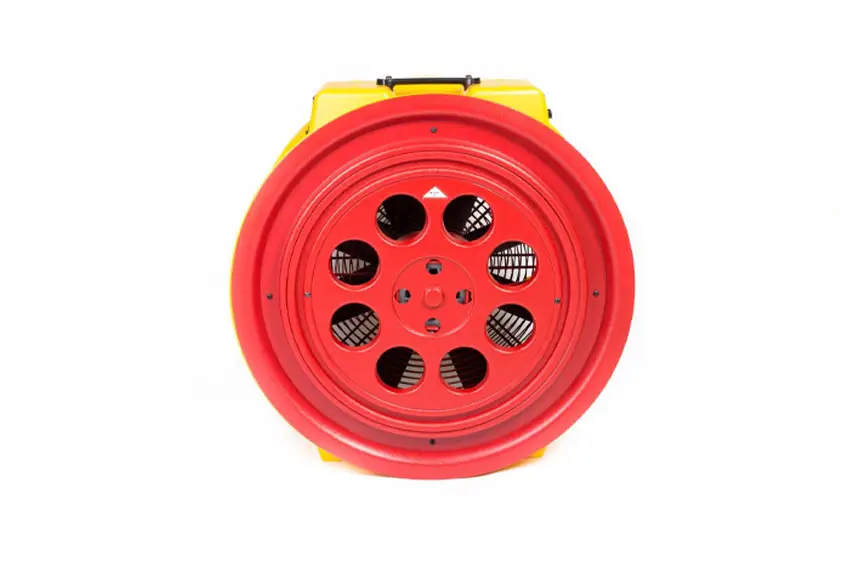

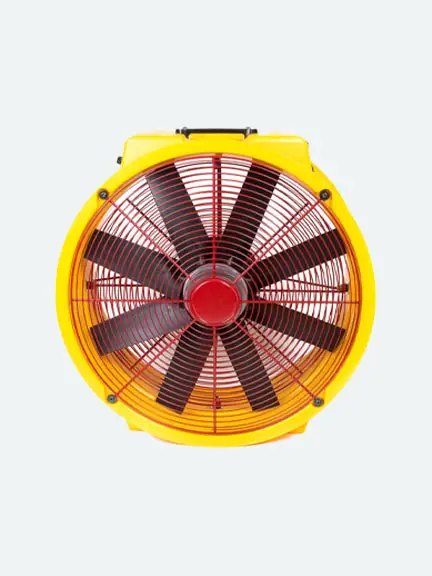

Model 2000 Series Fan
The Model 2000 Series Fan is no longer for sale and has been replaced by newer series fans. To view Retrotec’s current line of blower door systems, CLICK HERE
| Model # | Calibration Still Offered? |
Repairs Still Offered? | Product Replaced By: |
| 2100 Fan | No | No | 5000 Series |
| 2200 Fan | No | No | 5000 Series |
| 2350 Fan | Limited | No | 5000 Series |
- Model 2000 Series Fan
| Model 2000 Fan | ||||
| Flow Into: | CFM | Litres/sec | M3/h | |
| Max Flow reduce values by 15% for 50Hz |
Free Air | 6,300 | 2,973 | 10,700 |
| 50 Pa | 5,600 | 2,643 | 9,514 | |
| Min Flow | Range C1 at 10 Pa | 38 | 18 | 65 |
| Dimensions | 26” x 25” x 9.5” (66×63.5×24.1 cm) | |||
| Weight | 34 lb (15.4 kg) | |||
| Flow Accuracy | +/- 3% with Retrotec software and formal calibration | |||
| Specifications subject to change without notice. | ||||
