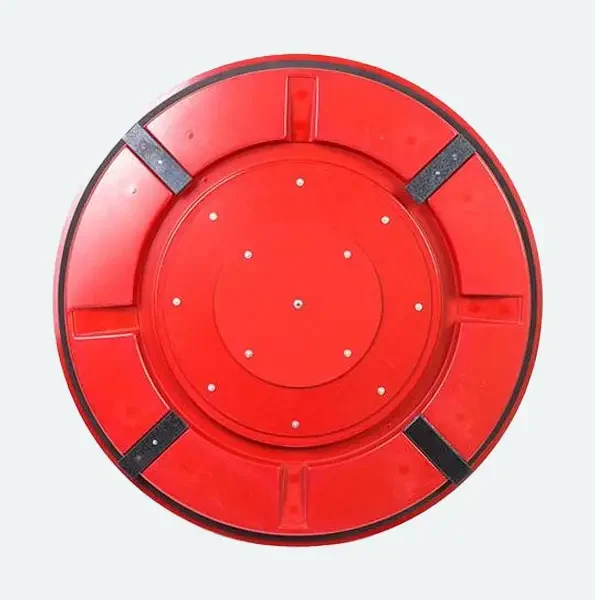

Field Verification Plate for Modular Panel for Model 2000/3000 Fans

Field Verification Plate for Modular Panel – Model 2000/3000 Fans

Ensure accurate field calibration checks with the Field Verification Plate, designed for use with the Modular Hard Panel blower door system or attachment to a 24” (61 cm) flex duct. By running the fan through a known hole size, technicians can measure airflow and compare results, helping determine if the system is within proper parameters or requires recalibration.

Key Features:

• Streamlined Field Calibration Checks – Easily verify system accuracy to ensure both the equipment and technician are performing correctly.
• Dual Pre-Cut Openings – Features two quick-access holes: 50 in² (322.6 cm²) and 144 in² (929 cm²) for simplified flow measurement.
• Modular Compatibility – Designed to fit the Modular Hard Panel blower door system or attach to a 24” (61 cm) flex duct.
• Seals Unused Fan Openings – Can be inserted into the fan panel to seal a second fan opening when only one fan is needed.
• Referencing Made Easy – Included in the Manual-Residential Pressure & Air Leakage Testing Guide, which details its use for field verification.

This plate simplifies routine field calibration checks, ensuring reliable and accurate blower door testing every time.
