6340 - Stacking Panel System

$18,400.00

$18,400.00

In stock

SKU
6340

* Required Fields

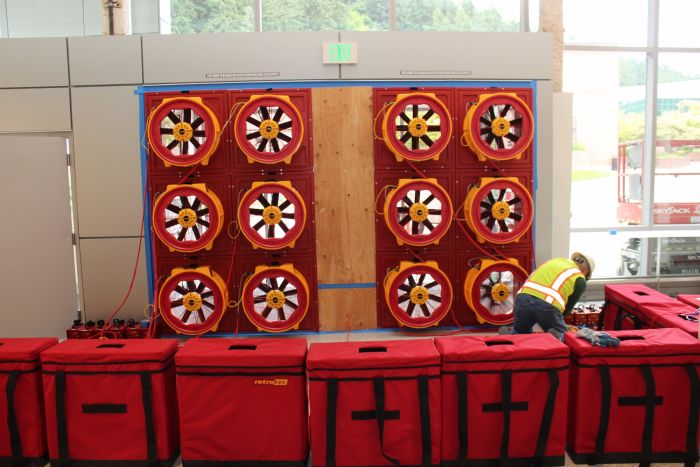

Install any number of fans in any opening with our new stacking panel that replaces the old 3 Fan Folding Panel used in the Model QMG.

Why “stacking”?  Carry them to the test site in a stack that is 30x30” and as high as needed for any number of fans.  Get a lot more panels in a small space making shipping faster, cheaper and easier.

Just clamp a wood frame into any size of opening and use blank sheets to fill other openings as needed. Then screw the Stacking Panels onto the frame and you can snap in any number of Model 1000, 5000 or 6000 Fans. That’s it- you’re ready to test.

Advantages:

  • Faster to install
  • One tenth the panel leakage
  • Fits any size opening
  • Fans won’t fall out

These same panels permit:

  • Under Floor Air Distribution (UFAD) testing with Model 1000, 5000 or 6000 Fans
  • Rain Penetration Tests with 6000 Fans
  • Large Commercial ducts with 4000 Fans
  • Durable design
  • Easy folding set up
  • Light-weight construction
  • Includes carrying case

3 x Stacking Panel for 1000/5000/6000 Fans

1 x Stacking Panel Carrying Case

3 x Fan Safety Strap for Modular Panels for 1000/5000/6000 Fans

36 x Stacking Panel Screws

3 x DM32 WiFi Digital Gauge Package

      Each Package contains:
      • DM32 WiFi Dual Channel Color Touchscreen Manometer
      • USB Cable, 6' (1.8 m)
      • Cat5 Cable, 7' (2 m) Blue
      • DM32 USB Charging Module (120V/60Hz, 240V/50Hz, or 110V/50Hz)
      • Gauge Case
      • DM32 Magnetic Clip
      • ISO17025 calibration of DM32
      • Gauge Calibration Verification Report

    3 x 6000 Series Fan Set

    • Each fan set contains:
      • 6000 Series Calibrated Fan
      • High Power Drive for 6000 Series Fan (120V/60Hz, 240V/50Hz, or 110V/50Hz)
      • Range Ring A for 5000/6000 Series Fan
      • B8 Plate for 5000/6000 Series Fan
      • 8 x 4" Blank Plugs
      • 2 x Fan Cover
      • System Calibration Verification Report

    3 x Case for System Accessories

    3 x Fan Case

    3 x Blower Door Tubing Kit

    3 x Umbilical for 1000/5000/6000 Series Fan, 7 ft (2 m)

Model:

Stacking Panel

Part Number:

PN314

Compatible Fan(s):

1000/5000/6000

Individual Panel (H x W x D)

31 5/8th x 31 5/8th





Model 6000 Fan



Flow Into:

CFM

Litres/sec

M3/h

Max Flow, per fan (60 Hz)

Reduces values by 15% for 50Hz fan

Free Air

8,100

3,823

13,762

50 Pa

7,700

3,634

13,082

75 Pa

7,400

3,492

12,573

Minimum Flow:









on Included Range B1

50 Pa

95

49

161

on Optional Range 74

50 Pa

37

17

63

on Optional Range 47

50 Pa

21

10

35

on Optional Range 29

50 Pa

9

4

15

Dimensions:

22" (55.9 cm) inlet diameter, 9.75" (24.8 cm) long, 25" (63.5 cm) height

Weight:

33.5 lb (15.2 kg) or 35.2 lb (16.0 kg) with Ring A & Plated B8 installed

Flow Accuracy:

+/-5%

Power:

120V@60hz/11A or 240V@50hz/4.9A or 110V@50Hz/ 8.9A

Recommended Fan Calibration Interval:

5 years
