Model 7310
$23,345.00

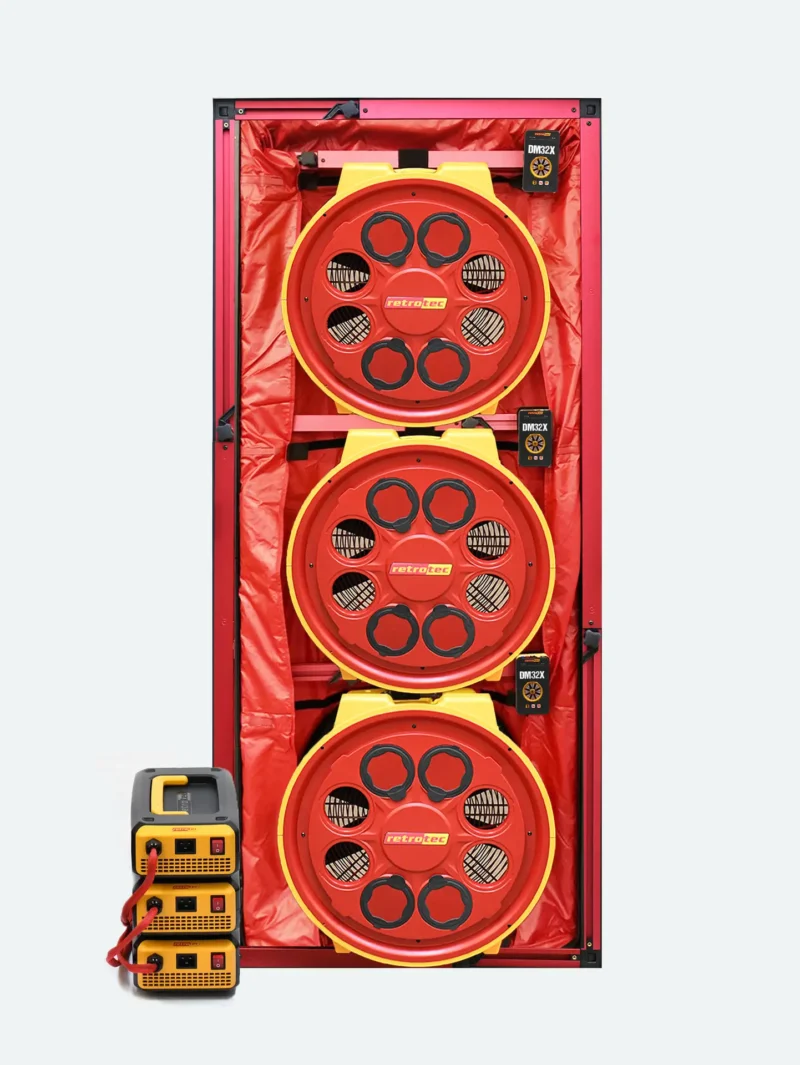

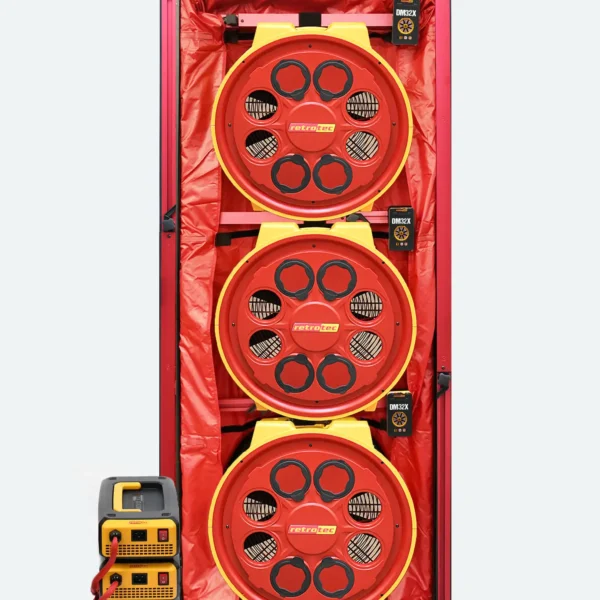

Model 7310 Blower Door System
This triple high-power fan system is designed to tackle the most demanding testing environments with unmatched efficiency and power.
The Model 7310 System delivers an extraordinary flow rate, providing the capacity to handle extensive testing needs, from large commercial buildings to expansive multi-floor structures.
New Features of the Model 7000 Fan include:
- Remarkably lightweight. An astonishing 30+% lighter than other fans on the market.
- Extremely powerful. Reach higher CFM @ 50Pa than the Model 5000 Fan (in many scenarios, even more than the 6000 fan).
- Built in accelerometer acts as an “auto tip” sensor. Fan will shut off if tipping is detected.
- Electronic Speed Control (ESC) takes the 48c D
- Supply & conveys it to 3-phase to the motor for precision speed control and adjustment.
- New safety feature enables auto braking of the DC motor in the case of fan failure.
- Fans never go in wrong direction during multi fan test.
- Paired with Retrotec’s DM32X Gauge (included), you can utilize:
- Real Time Graphing & Data Logging
- Built-in testing and training apps
- Embedded & online manuals, videos, & resources

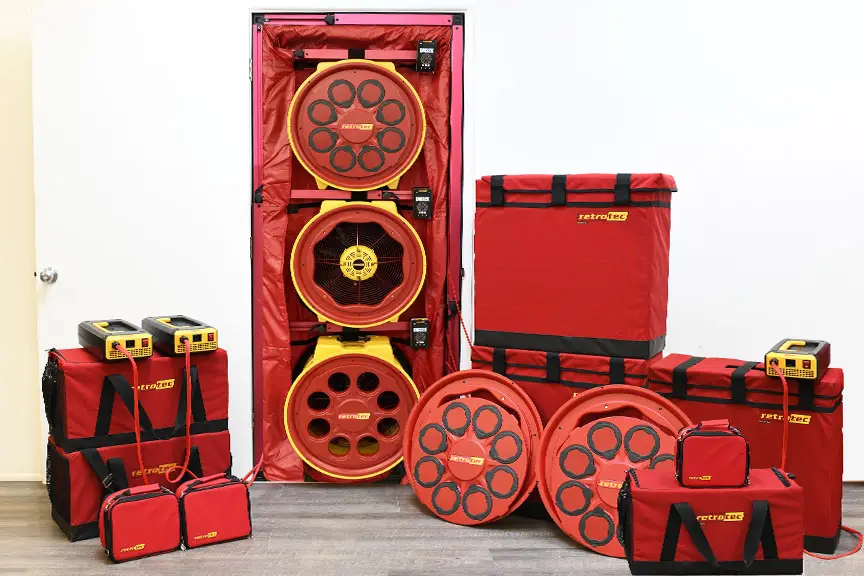

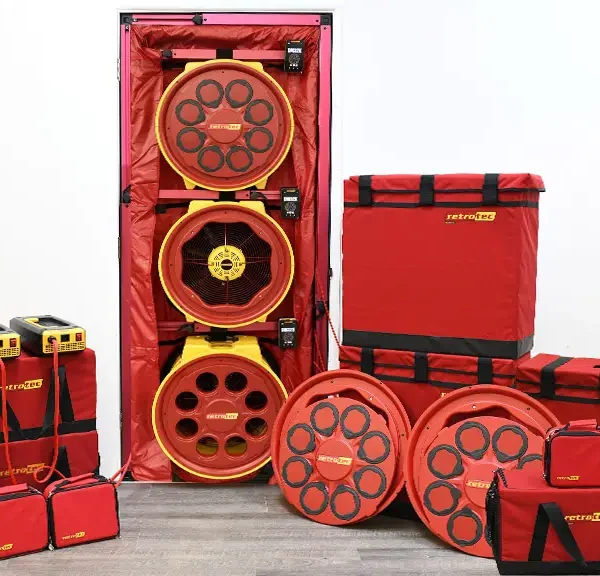

3 x 7000 Series Fan Set

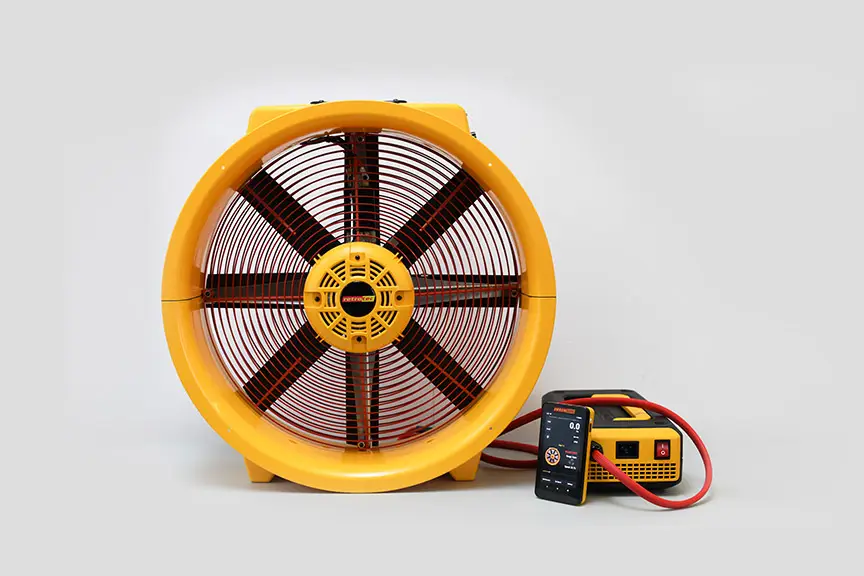

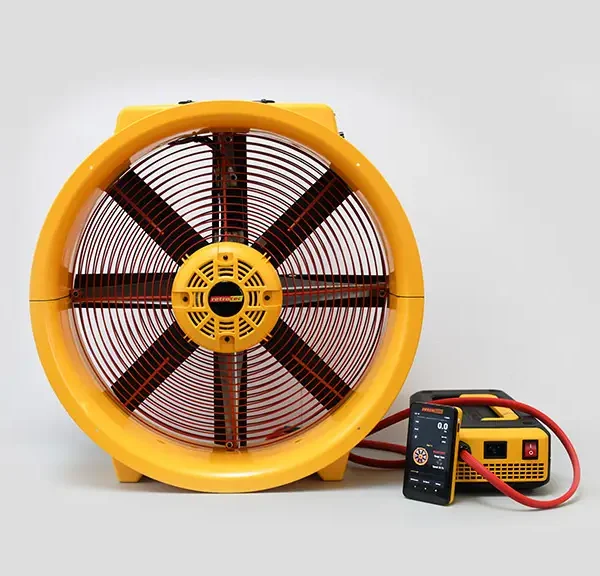

- 7000 Series Calibrated Fan

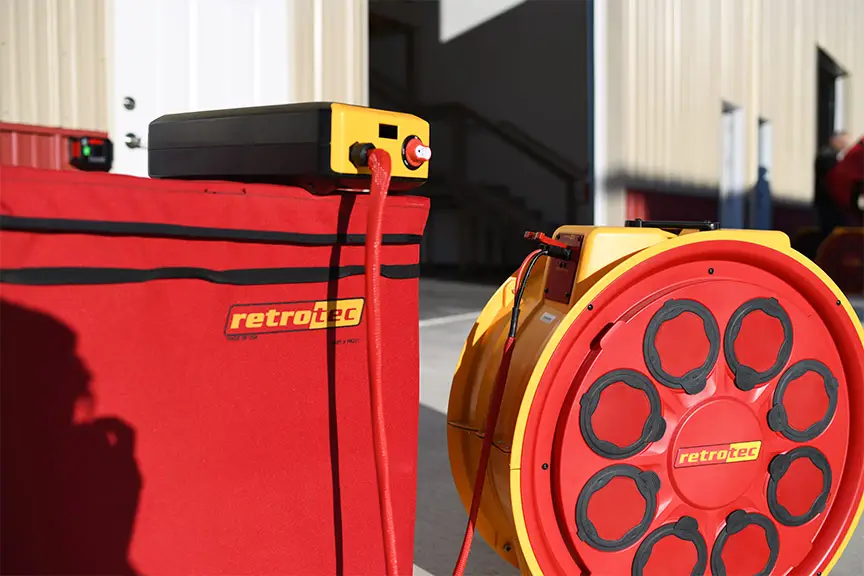

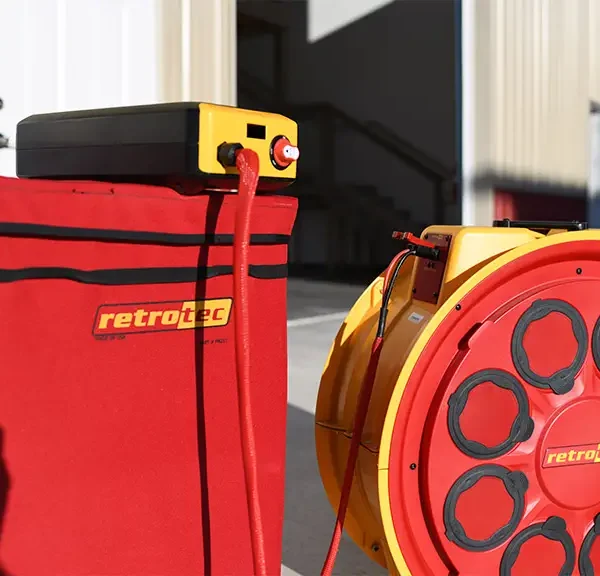

- High Power Drive for 7000 Series Fan (120V/60Hz, 240V/50Hz, or 110V/50Hz)
- Range Ring A for 7000 Series Fan
- B8 Plate for 7000 Series Fan
- 8 x Blank Plugs
- 2 x Fan Cover
- System Calibration Verification Report
3 x DM32X Gauge Package
- DM32X Gauge
- USB-C Charging Cable
- Cat5 Cable
- Gauge Case
- DM32X Magnetic Clip
- ISO17025 calibration of DM32X
- Gauge Calibration Verification Report
1 x Large Frame Package
- Large Aluminum Frame
- Large #5 Crossbar
- 3 x Fan Crossbar Strap for Aluminum Frame
- Large SmartCloth
- Large Roll Up Cloth Case
- 2 x Large #6 Crossbar
- 1 x Large Fan SmartCloth
1 x Large Triple Door Cloth
2 x Speed Control Cable
3 x Case for System Accessories
3 x Fan Case
3 x Blower Door Tubing Kit
3 x Umbilical for 1000/5000/6000 Series Fan, 7 ft (2 m)
| Model 7000 Fan | ||||
| Flow Into: | Flow 120/240V (CFM / M3H) | |||
| Max Flow, per fan | Free Air | 7,850 CFM / 9,342 CFM • 15,872 m3/h | ||
| 50 Pa | 7,358 CFM / 8,896 CFM • 15,115 m3/h | |||
| 75 Pa | 7,054 CFM / 8,637 CFM • 14,675 m3/h | |||
| Minimum Flow: | ||||
| on Included Range B1 | 60 Pa | 120 CFM • 204 m3/h • 57 1/s | ||
| on Optional Range 74 | 50 Pa | 51 CFM • 86 m3/h • 24 1/s | ||
| on Optional Range 47 | 50 Pa | 24 CFM • 40 m3/h • 11 1/s | ||
| on Optional Range 29 | 50 Pa | 8 CFM • 14 m3/h • 4 1/s | ||
| Dimensions: | 22″ (55.9 cm) inlet diameter, 9.75″ (24.8 cm) long, 25″ (63.5 cm) height | |||
| Weight: | Fan Only : 23 lbs/ 10.43 kg Fan + Ranges: 25.4 lbs/ 11.52 kg Power Supply: 13.4 lbs/ 6.08 kg |
|||
| Flow Accuracy: | +/-5% | |||
| Digital Gauge Model: | DM32X (Click Here) | |||
