7120 Hard Panel Blower Door System
$10,430.00
India
Local Resellers
Building Doctor DMCC
Contact Reseller

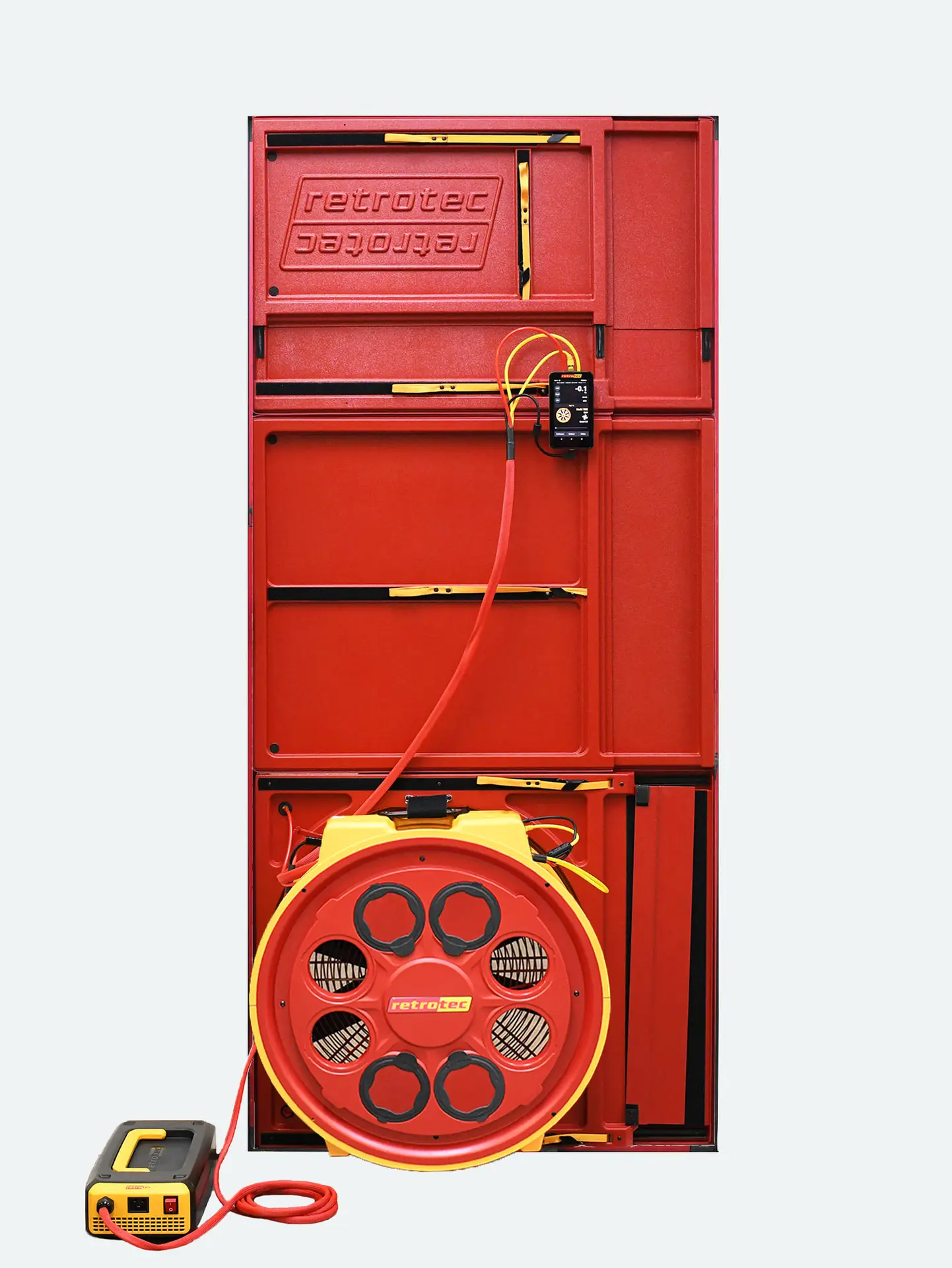

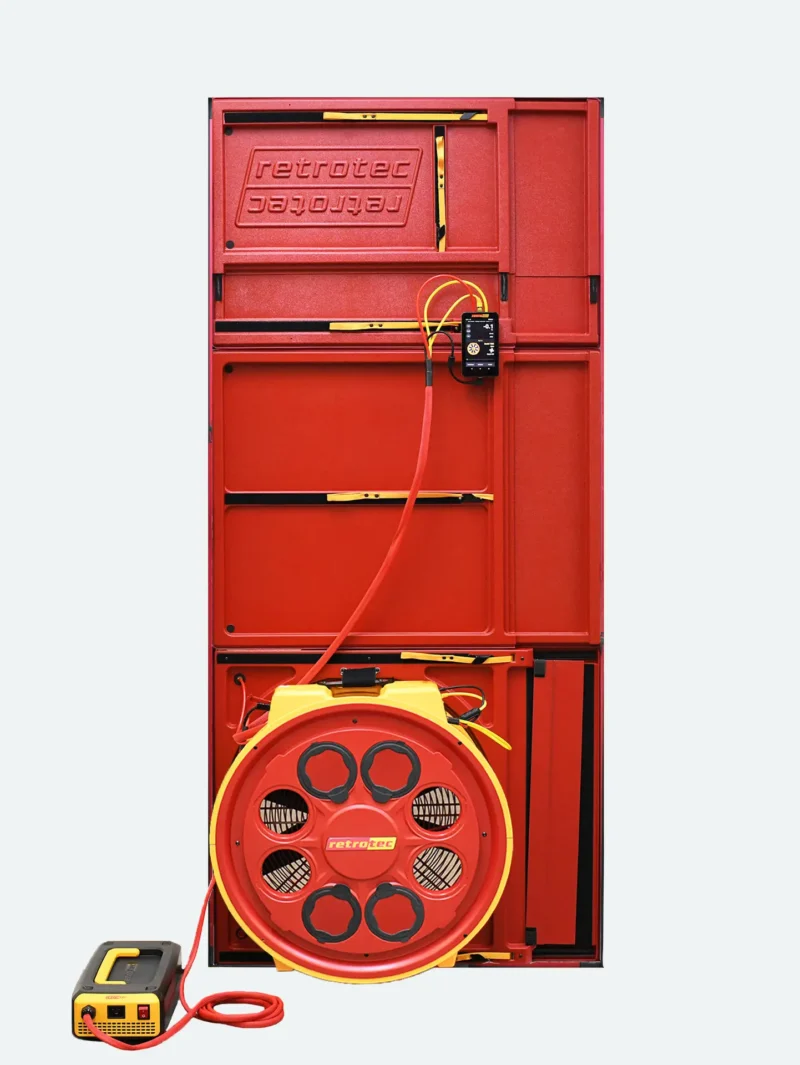

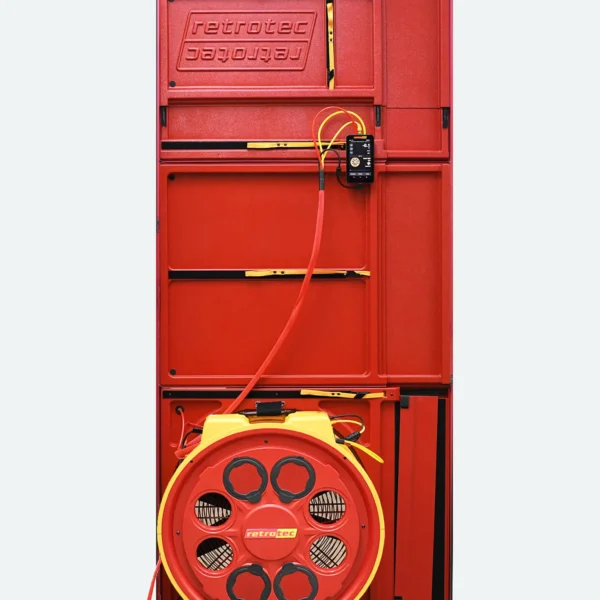

Model 7120 Hard Panel System
Experience the next level of professionalism with the Retrotec 7120 System. This hard panel system, adapted with the advanced 7000 Series fan, offers an incredibly rapid setup and a sleek, professional appearance that makes it a favorite among top building science companies.
Revolutionary Design and Power
The 7120 System incorporates the revolutionary blower door fan from the 7000 Series, which is over 30% lighter than previous models. Weighing just 23 lbs (10.4 kg), compared to its 33.5 lbs (15 kg) predecessors, it delivers unmatched portability and ease of use.
Unmatched Performance
The 7120 System is designed to deliver higher CFM @ 50Pa than the Model 5000 Fan and often more than the 6000 fan, ensuring it meets the rigorous demands of residential and small commercial testing.

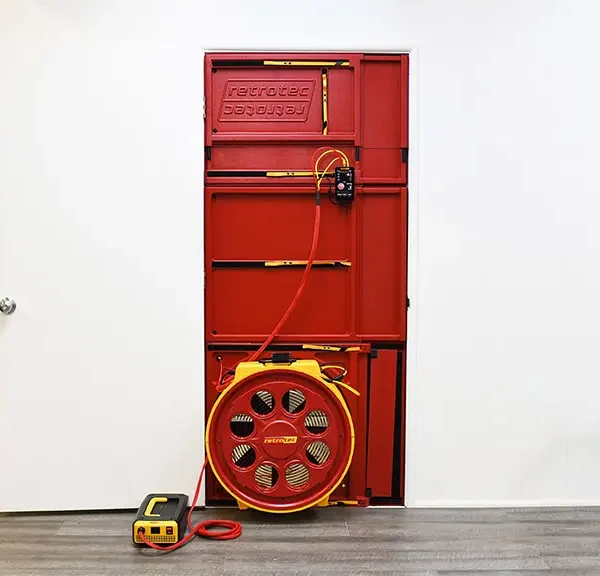

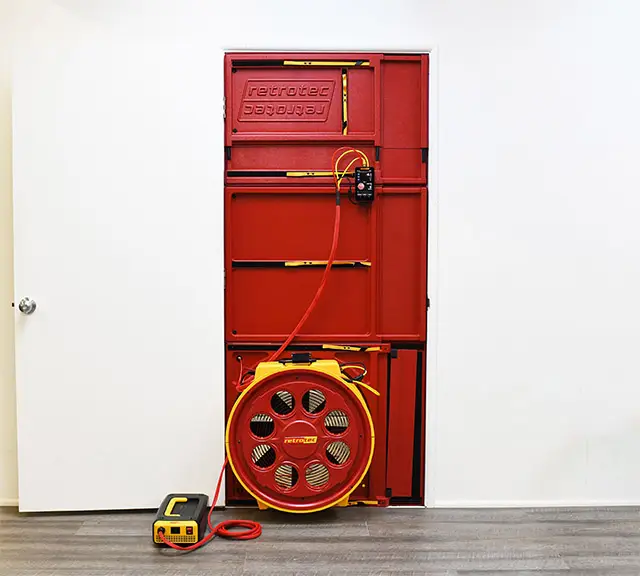

Professional and Efficient Setup
The hard panel system offers a clean, professional look, ideal for multi-story buildings where one or two high-power fans per floor are typically sufficient. This design not only enhances the visual appeal but also ensures a quick and efficient setup, saving valuable time on the job site.
Advanced Features with the DM32X Gauge:
- Real-Time Graphing & Data Logging: Effortlessly capture and analyze data.
- Built-In Testing and Training Apps: Streamline your testing processes with integrated applications.
- Comprehensive Support: Access embedded and online manuals, videos, and resources for seamless operation.
1 x 7000 Series Fan Set
- 7000 Series Calibrated Fan
- High Power Drive for 7000 Series Fan (120V/60Hz, 240V/50Hz, or 110V/50Hz)
- Range Ring A for 7000 Series Fan
- B8 Plate for 7000 Series Fan
- 8 x 4″ Blank Plugs
- 2 x Fan Cover
- System Calibration Verification Report
1 x DM32X Gauge Package
- DM32X Gauge (Newly Released! click here for details)
- USB-C Charging Cable
- Cat5 Cable
- Gauge Case
- DM32X Magnetic Clip
- ISO17025 calibration of DM32X
- Gauge Calibration Verification Report
1 x Hard Panel Set for 1000/5000/6000/7000 Series Fan
1 x Hard Fan Case
1 x Accessory Case
1 x Blower Door Tubing Kit
1 x Umbilical for 7000 Series Fan
| Model 7000 Fan | ||||
| Flow Into: | Flow – Battery | Flow 120/240V (CFM / M3H) | ||
| Max Flow, per fan | Free Air | 8,900 CFM • 15,121 m3/h • 4,2001/s | 7,850 CFM / 9,342 CFM • 15,872 m3/h | |
| 50 Pa | 8,413 CFM • 14,302 m3/h • 3,970 1/s | 7,358 CFM / 8,896 CFM • 15,115 m3/h | ||
| 75 Pa | 8,136 CFM • 13,823 m3/h • 3,840 1/s | 7,054 CFM / 8,637 CFM • 14,675 m3/h | ||
| Minimum Flow: | ||||
| on Included Range B1 | 60 Pa | 120 CFM • 204 m3/h • 57 1/s | ||
| on Optional Range 74 | 50 Pa | 51 CFM • 86 m3/h • 24 1/s | ||
| on Optional Range 47 | 50 Pa | 24 CFM • 40 m3/h • 11 1/s | ||
| on Optional Range 29 | 50 Pa | 8 CFM • 14 m3/h • 4 1/s | ||
| Dimensions: | 22″ (55.9 cm) inlet diameter, 9.75″ (24.8 cm) long, 25″ (63.5 cm) height | |||
| Weight: | Fan Only : 23 lbs/ 10.43 kg Fan + Ranges: 25.4 lbs/ 11.52 kg Power Supply: 13.4 lbs/ 6.08 kg Battery Pack: 15.6 lbs/ 7.07 kg |
|||
| Battery Pack Runtime: | 24 minutes at 100% continuous use 88 minutes at 50% continuous use Full charge in 4.5 hrs |
|||
| Flow Accuracy: | +/-5% | |||
| Digital Gauge Model: | DM32X (Click Here) | |||
