5100 Blower Door System
Our most popular systems for residential and small commercial. Includes the newly released DM32X gauge.
$0.00
India
Local Resellers
Building Doctor DMCC
Contact Reseller
The Most Popular Blower Door System for Residential & Small Commercial Applications

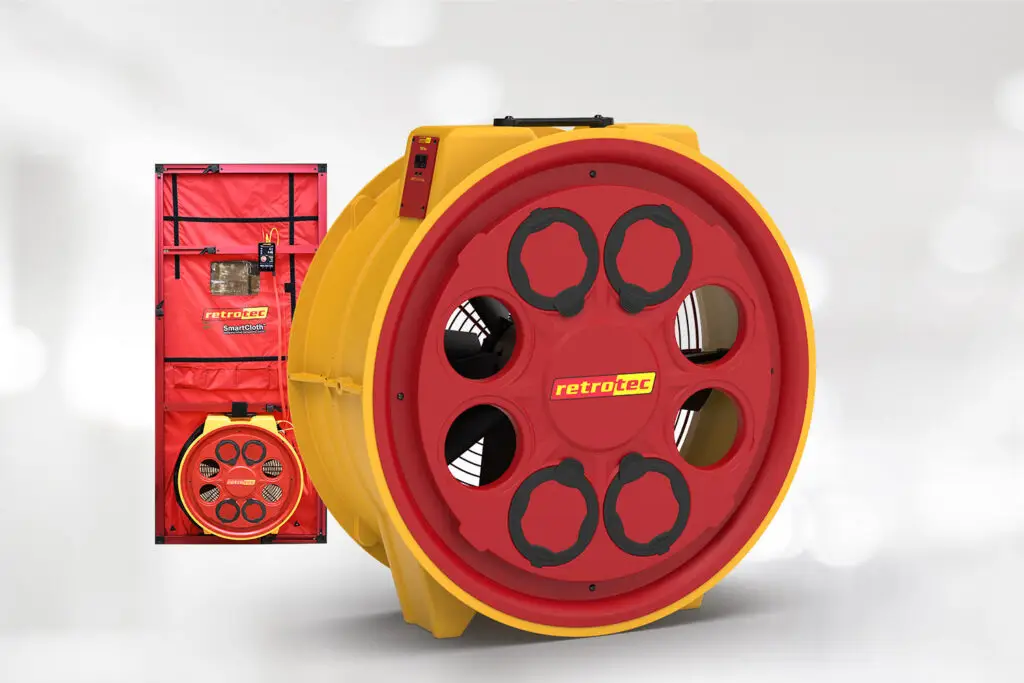

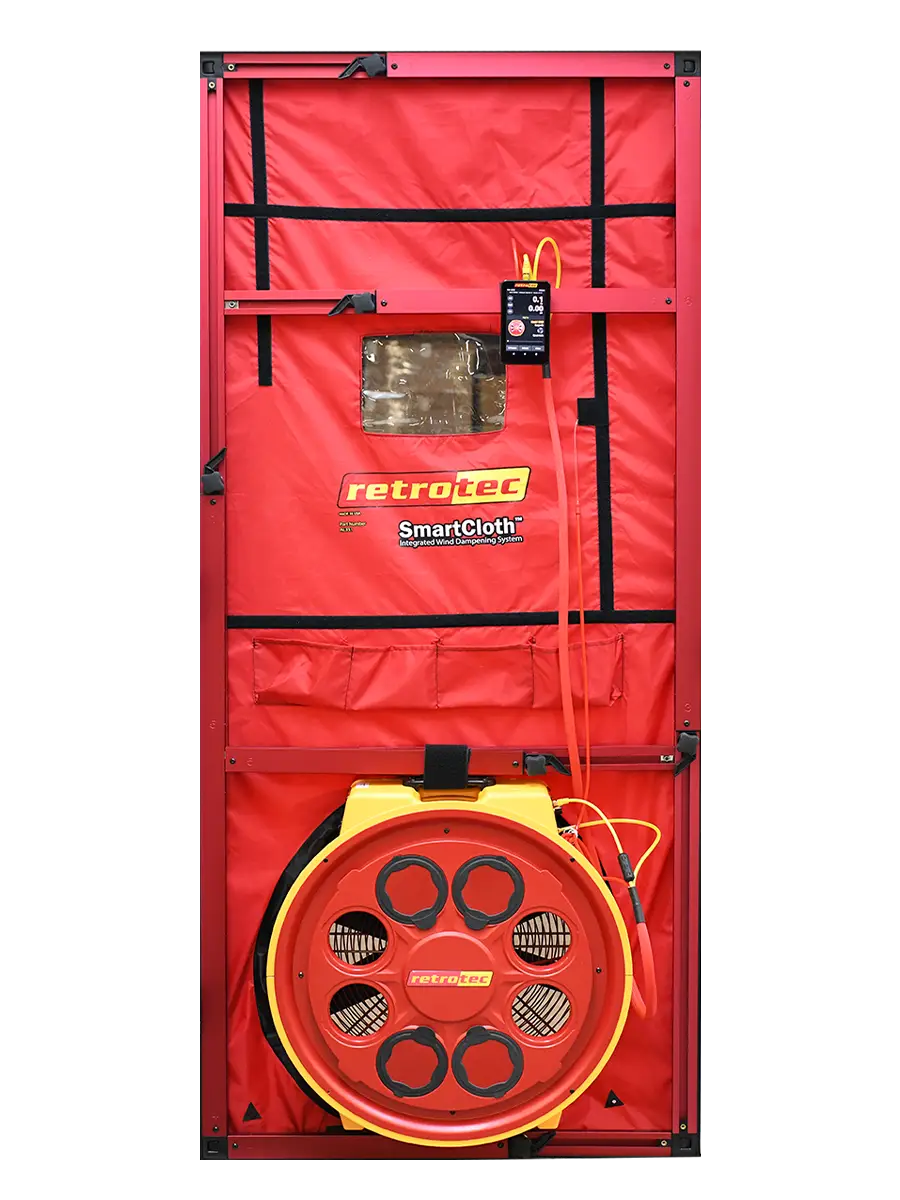

Retrotec’s 5100 Blower Door System is our best-selling solution, outselling all other makes and models on the market. Perfect for testing any residential home, this system comes complete with everything you need: the advanced DM32X gauge, a powerful fan, six ranges, connectors, software, and a durable fan shell backed by an industry-leading 10-year warranty.
Designed for both fully automatic and manual operation, the 5100 features a quick-connect frame with an extra crossbar for added stability and convenient gauge mounting. The system includes Retrotec’s SmartCloth,™ with built-in bias pressure tubing to act as a wind dampening tool.
With everything included, it’s an all-in-one solution that delivers unmatched performance and reliability.
Who Uses the 5100?
This versatile system is trusted by energy auditors, building contractors, HVAC contractors, remodelers, and home inspectors. Whether you’re conducting energy audits, ensuring HVAC efficiency, or inspecting building envelopes, the 5100 is built to meet your needs.

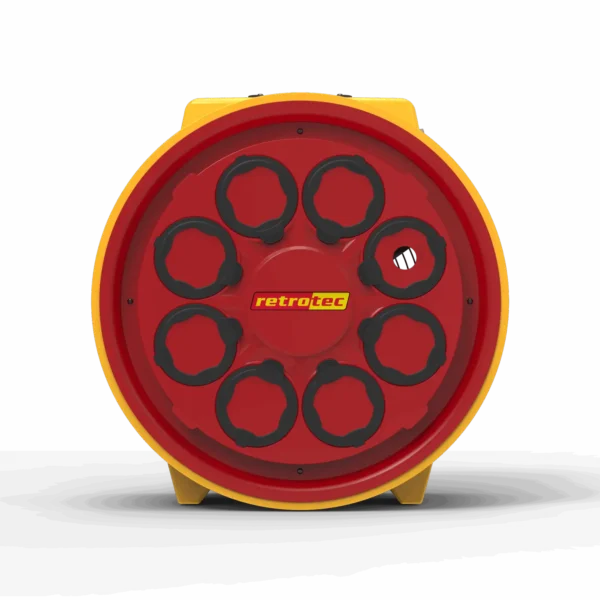

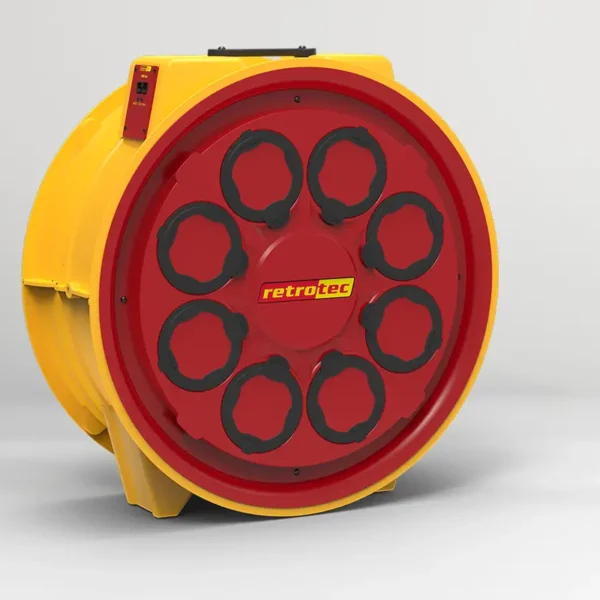

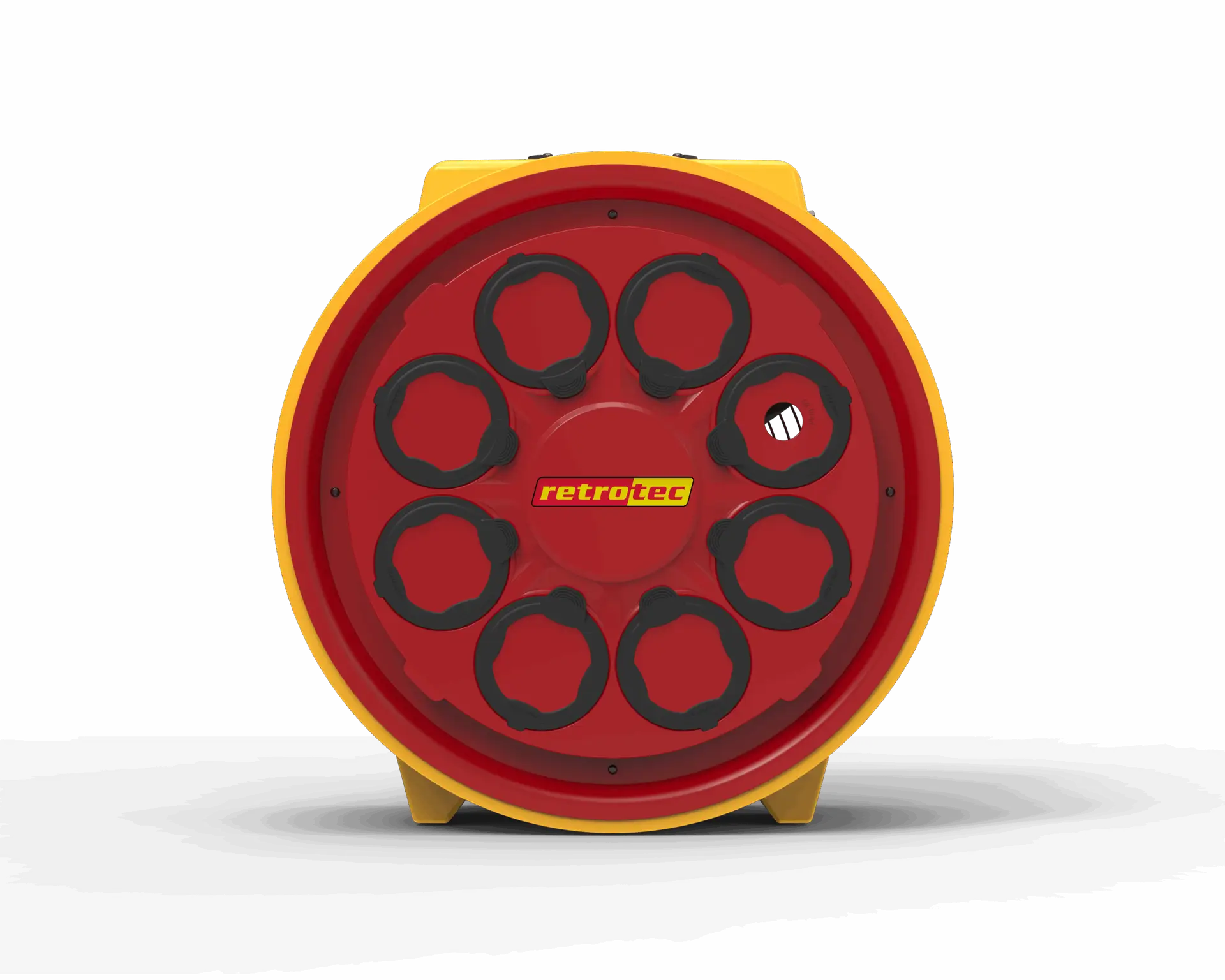

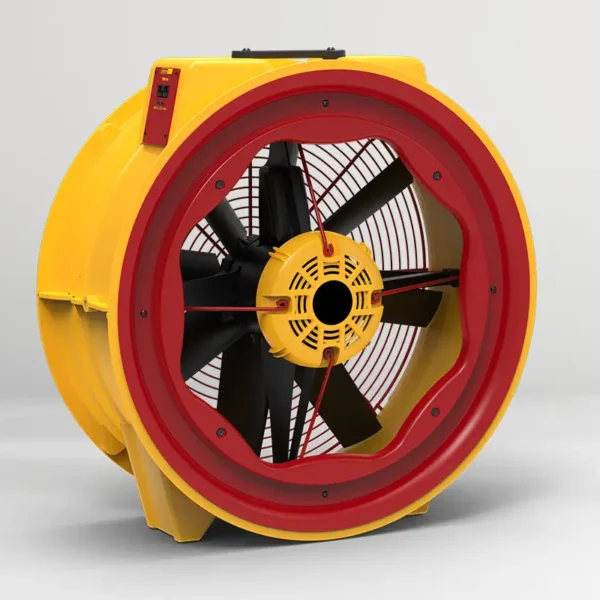

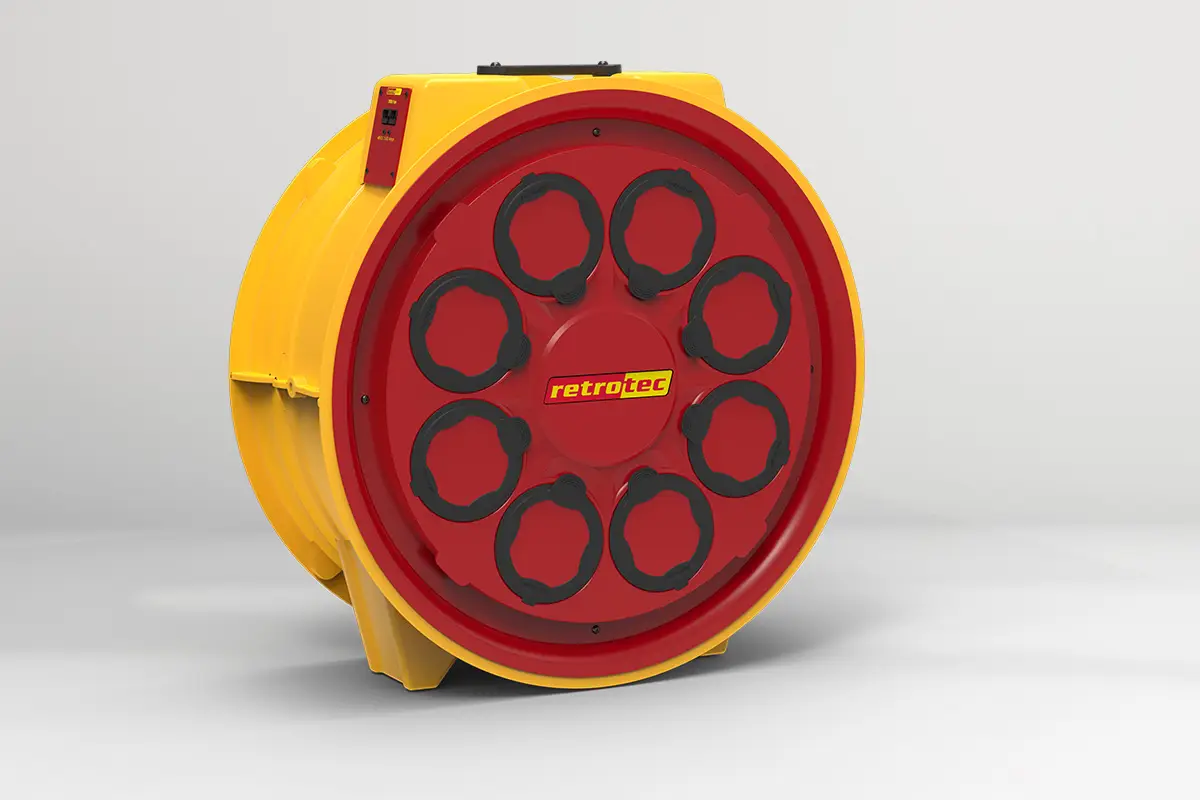

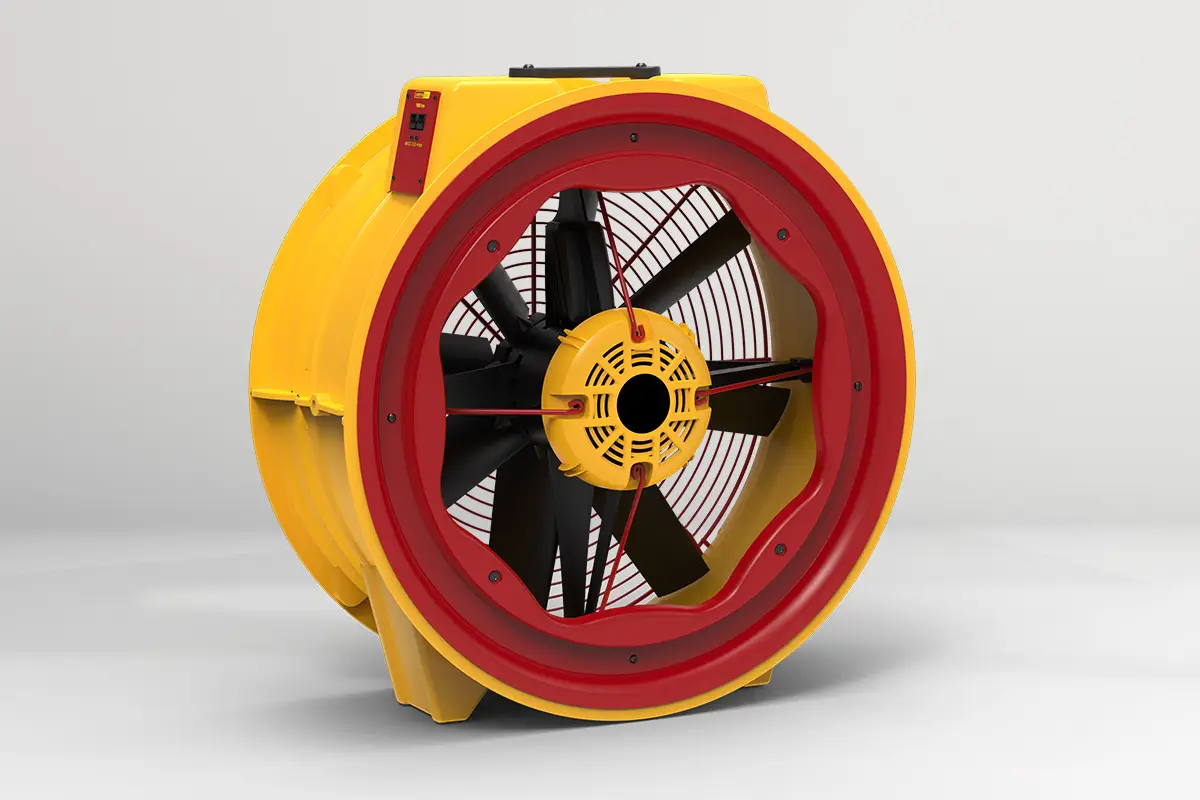

1 x 5000 Series Fan Set
- 5000 Series Calibrated Fan
(120V/60Hz, 240V/50Hz, or 110V/50Hz) - Range Ring A
- B8 Plate
- 8 x Blank Range Plugs
- Blower Door Tubing Kit
- Tubing Umbilical
- Fan Cover
- Power Cord
- System Calibration Verification Report

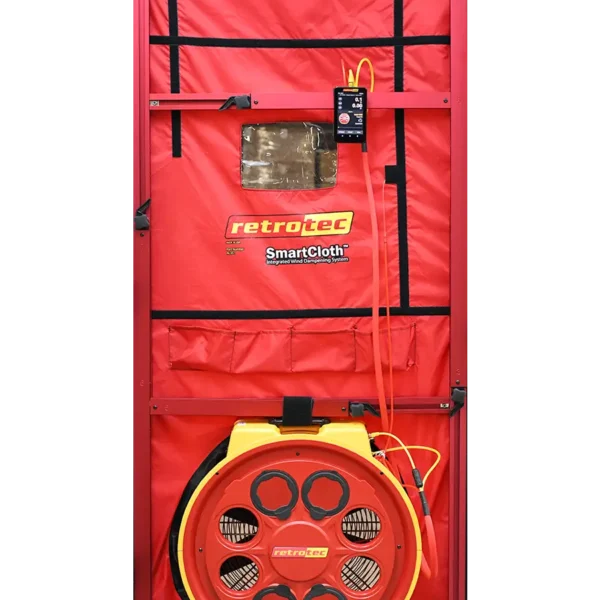

1 x SmartCloth™ Door Panel & Frame
- SmartCloth™ Wind Dampening Cloth Door
- Aluminum Frame, Etched with Sizing Markings
- Traveling Case
1 x DM32X Gauge Package
- DM32X Gauge
- Gauge Case
- USB-C Charging Cable
- Cat5 Cable
- ISO17025 calibration of DM32X
- Gauge Calibration Verification Report
| Model 5000 Fan | ||||
| Flow Into: | CFM | Litres/sec | M3/h | |
| Max Flow, per fan (60 Hz)
Reduces values by 15% for 50Hz fan |
Free Air | 6,400 | 3,020 | 10,874 |
| 50 Pa | 5,700 | 2,690 | 9,684 | |
| 75 Pa | 5,400 | 2,549 | 9,175 | |
| Minimum Flow: | ||||
| on Included Range B1 | 50 Pa | 111 | 52 | 188 |
| on Optional Range 74 | 50 Pa | 37 | 17 | 63 |
| on Optional Range 47 | 50 Pa | 21 | 10 | 35 |
| on Optional Range 29 | 50 Pa | 9 | 4 | 15 |
| Dimensions: | 22″ (55.9 cm) inlet diameter, 9.75″ (24.8 cm) long, 25″ (63.5 cm) height | |||
| Weight: | 33.5 lb (15.2 kg) or 35.2 lb (16.0 kg) with Ring A & Plated B8 installed | |||
| Flow Accuracy: | +/-5% | |||
| Power: | 120V@60hz/11A or 240V@50hz/4.9A or 110V@50Hz/ 8.9A | |||
| Recommended Fan Calibration Interval: | 5 years | |||
| Digital Gauge Model: | DM32X (Click Here) | |||
