Model 350x (Europe)
Most advanced residential/commercial duct tester for Europe.
Includes the newly released DM32X Gauge
$3,900.00

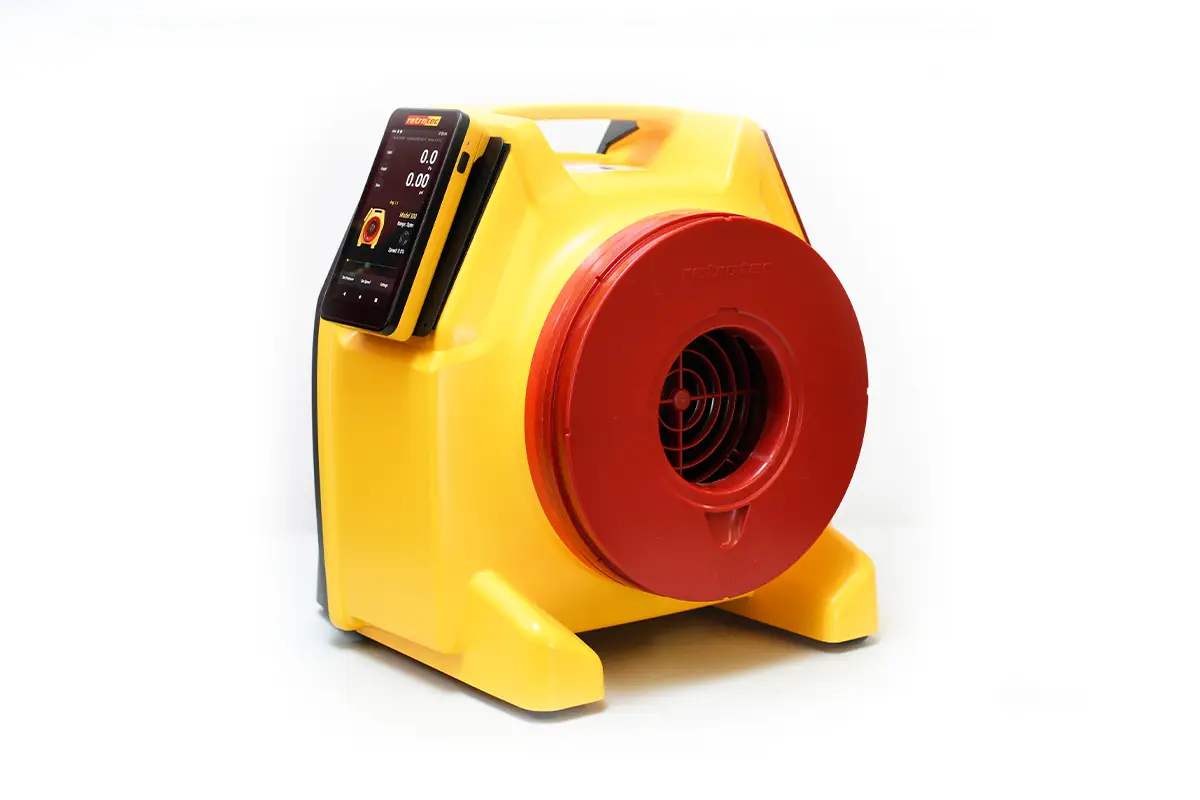

The Lightweight and Versatile European DucTester
The Model 350x DucTester is the ultimate solution for European duct testing, offering exceptional portability and precision. Designed to handle a wide range of testing applications.
This complete package includes multiple flow ranges, enabling high-to-low flow testing for maximum accuracy. It also features the industry-changing DM32X gauge, ensuring seamless control and precise measurements in every test.
Super lightweight and easy to operate, the Model 350x is complemented by intuitive quick guides, making it the best choice for testing European ducts. Built upon the foundation of the former Model 350, this upgraded version includes an integrated gauge mount for enhanced accessibility and a redesigned foot base for increased stability.
Who Uses the Model 350x?
Energy auditors, HVAC contractors, building contractors, remodelers, and home inspectors rely on the Model 350x DucTester for its efficiency, ease of use, and superior performance in European duct testing.

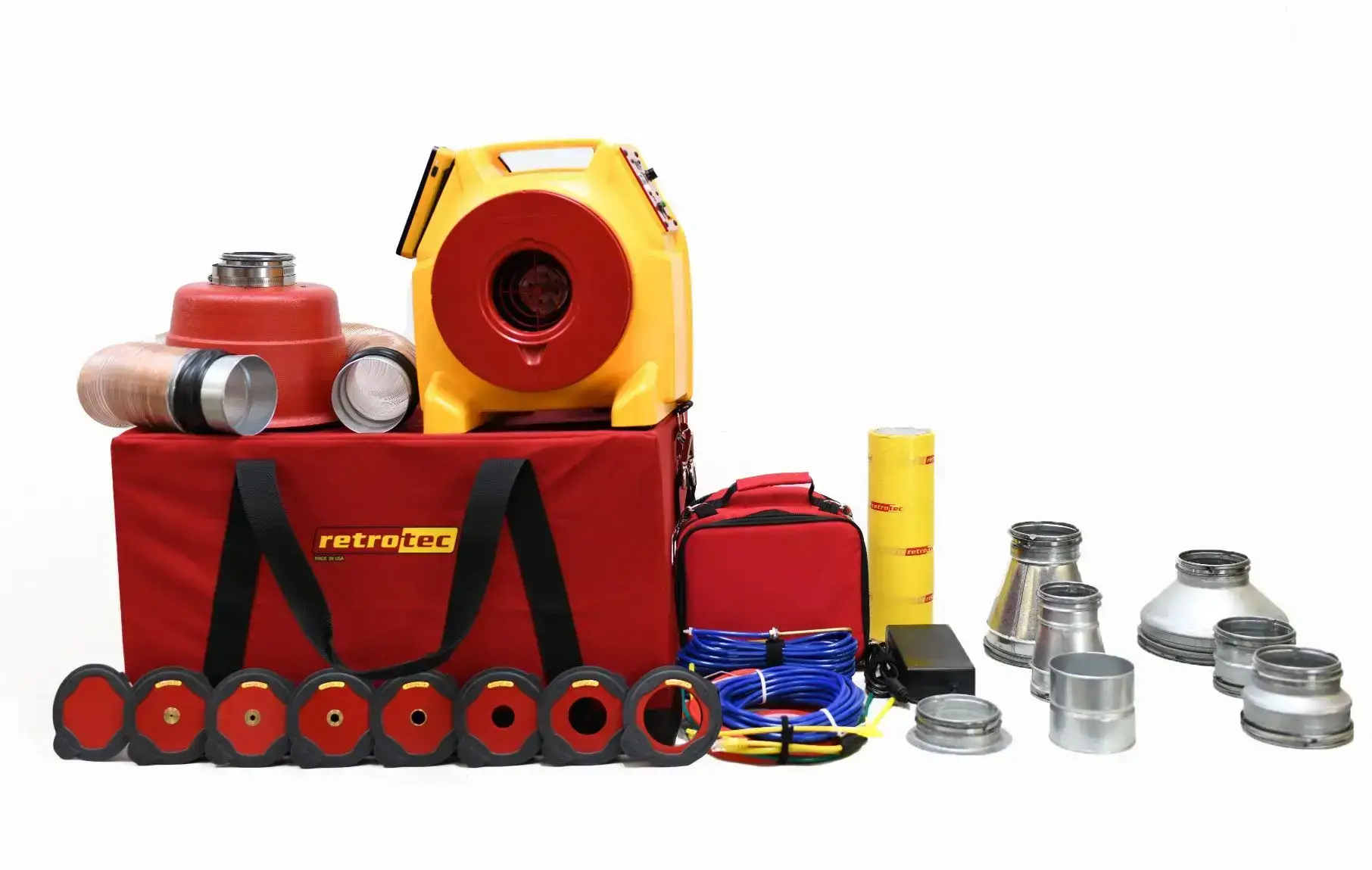

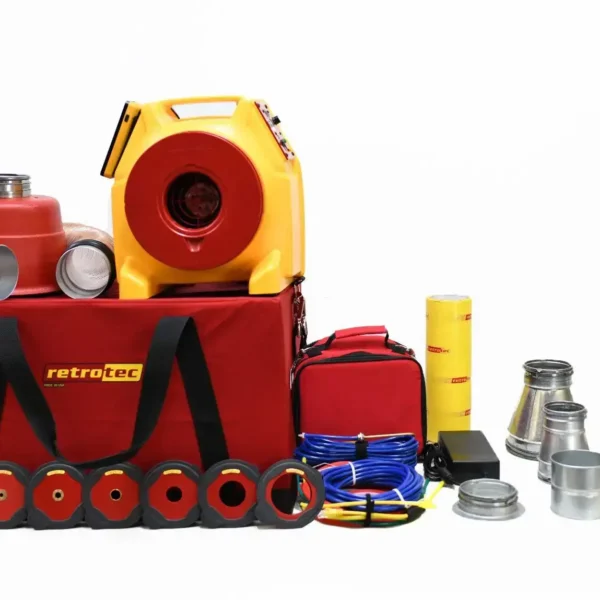

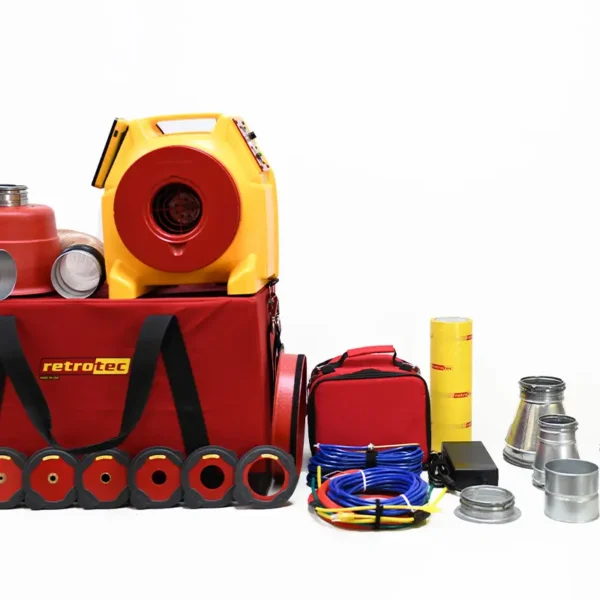

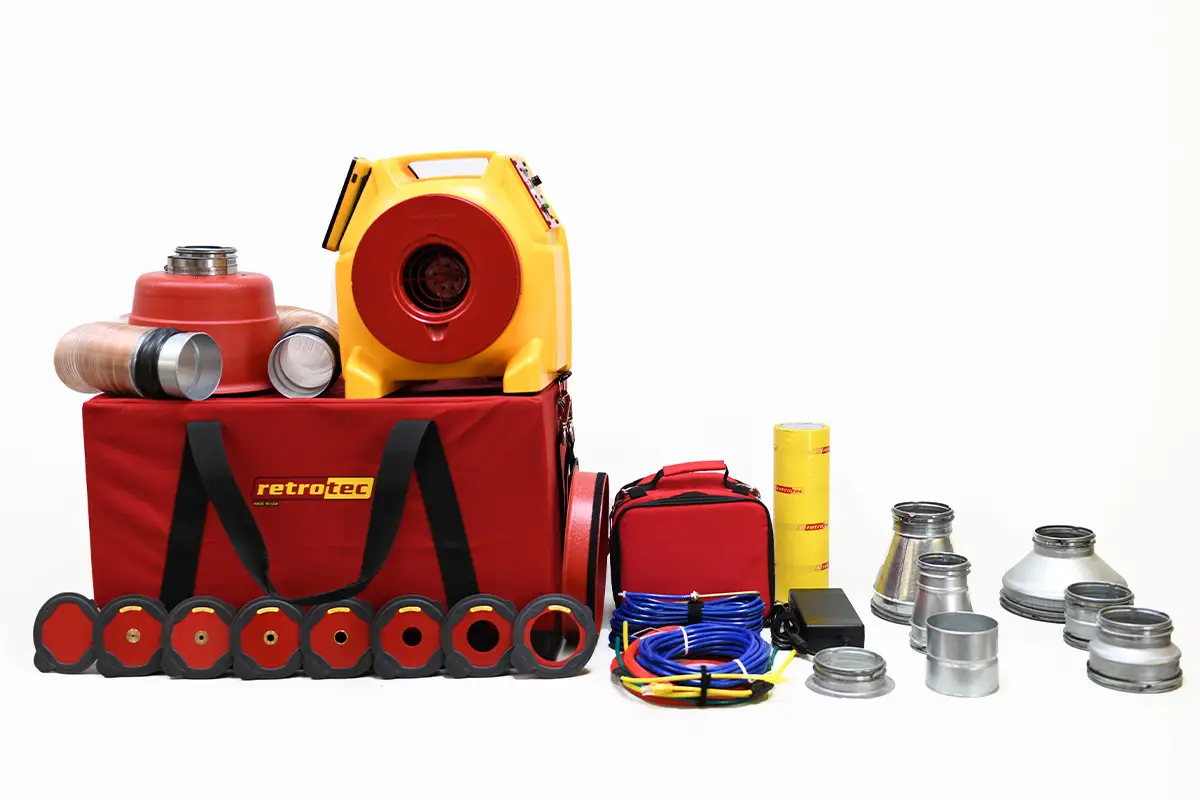

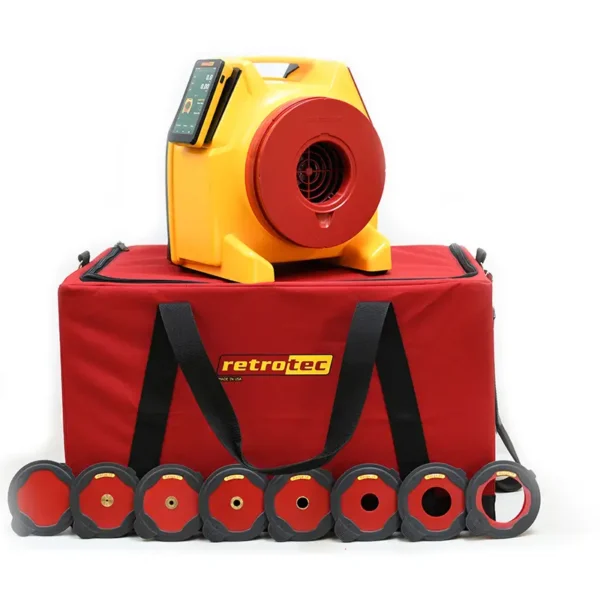

1 x 300 Series Fan Set

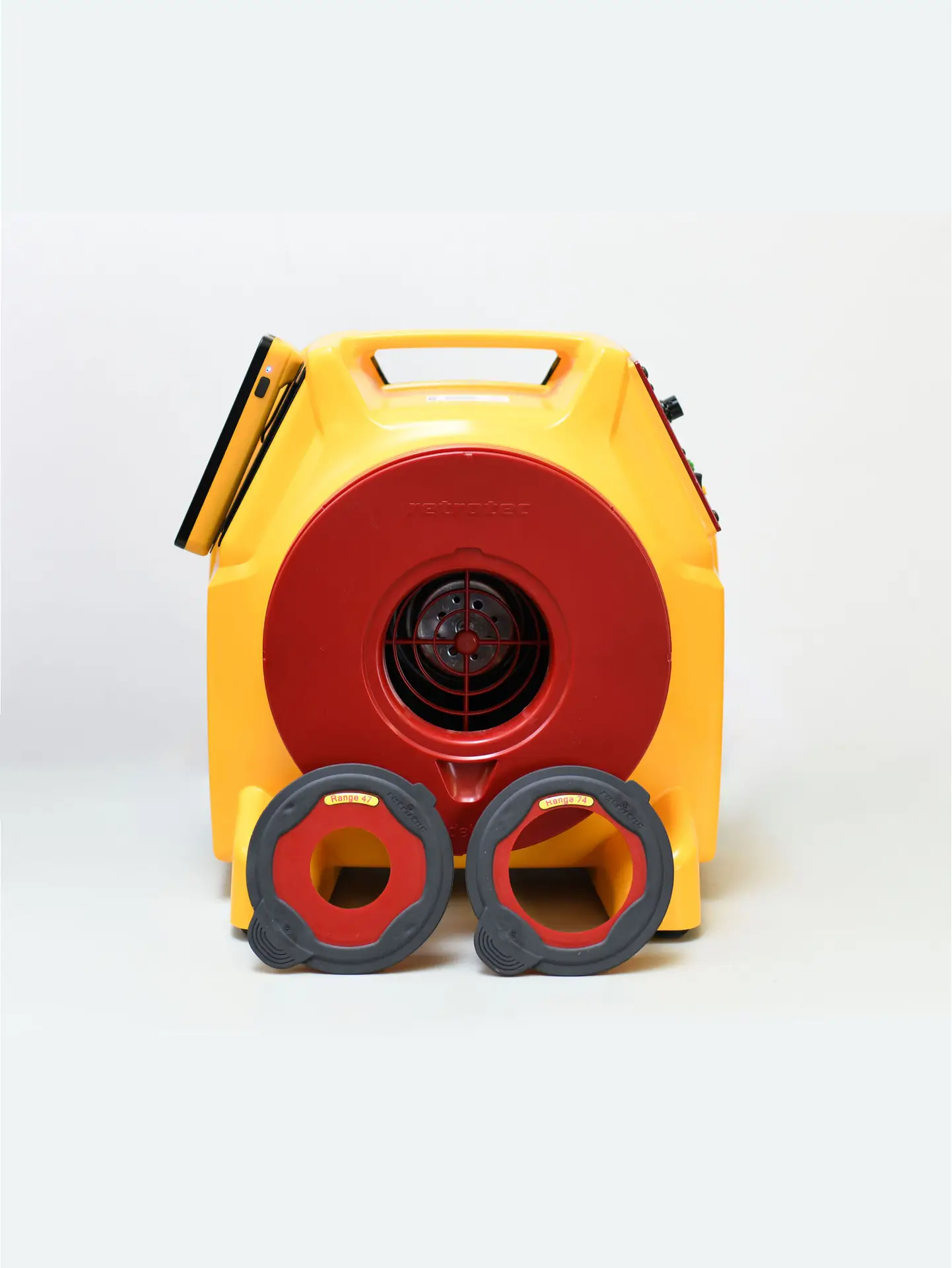

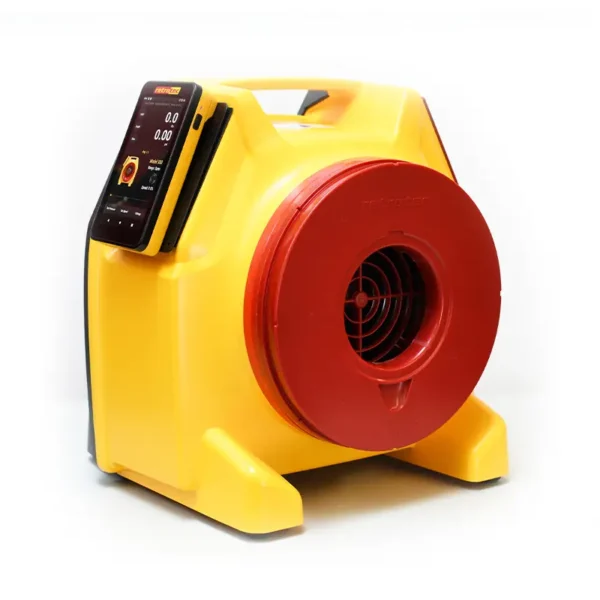

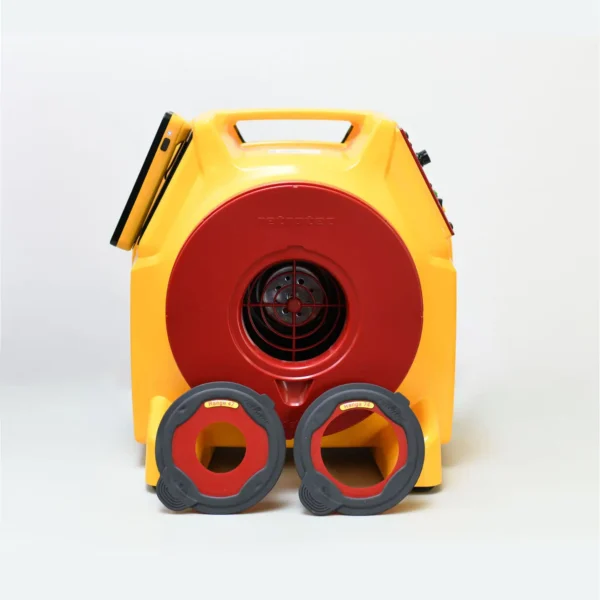

- 300 Series Calibrated Fan
- 4″ Plug – Range 74
- 4″ Plug – Range 47
- Power Cord
- Control Panel
- End Plate 300 – Range 102
- DucTester Tubing Kit
- Tubing Umbilical
- Quick Connect Collar
- System Calibration Verification Report
1 x DucTester Accessory Kit
- Large Deluxe Tool Case
- Mylar Flex Duct for DucTester
10″ (25.4 cm) diameter x 12.5′ (3.8 m) long
with 13 9/16′ (34.5 cm) x 13 9/16′ (34.5 cm) - CLEAR flange
- Grill Mask
1 x DM32X Gauge Package
- DM32X Gauge
- Gauge Case
- USB-C Charging Cable
- Cat5 Cable
- ISO17025 calibration of DM32X
- Gauge Calibration Verification Report
| Fan Model #
|
300x
|
|||
| Flow Into: | CFM | liters/sec | m3/h | |
| Maximum Flow, CFM | Free Air | 798 | 376.6 | 1355.8 |
| 25 Pa | 719.8 | 339.7 | 1222.9 | |

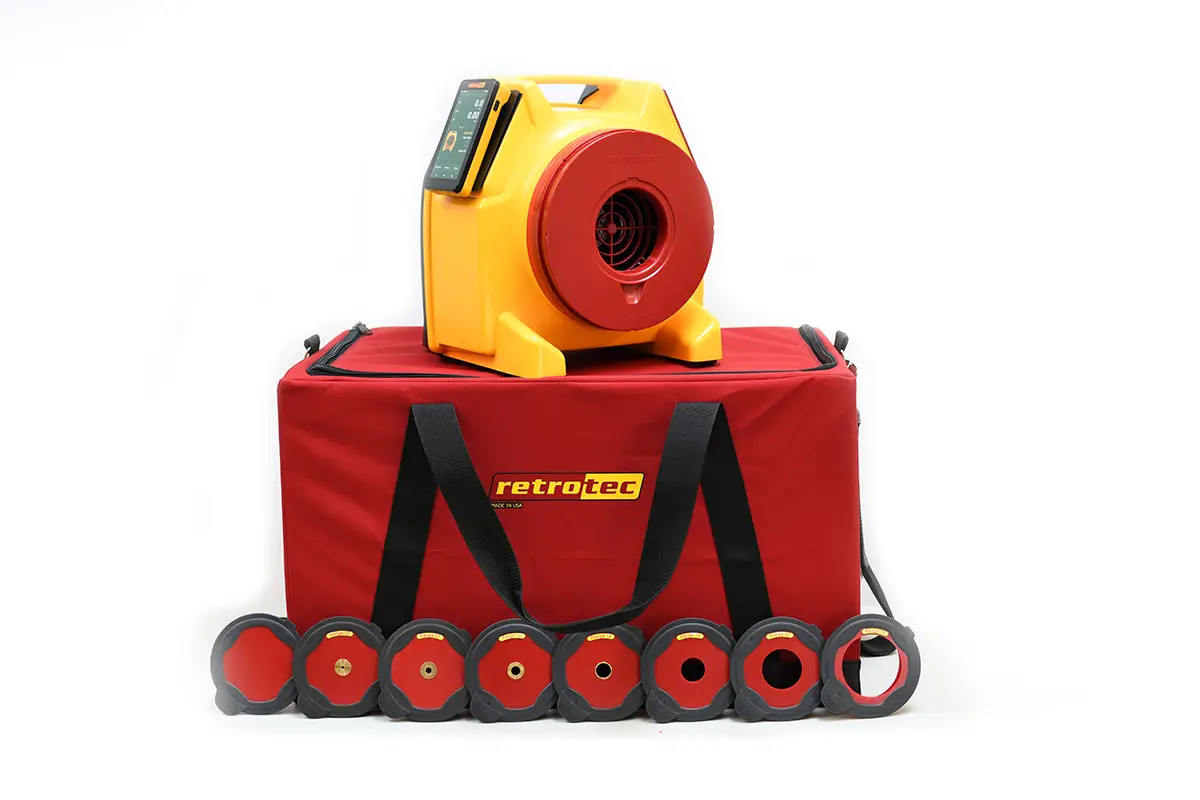

| Minimum Flow | Range 102 – Standard | 164.3 | 77.5 | 279.1 |
| Range 74 – Standard | 28.1 | 13.3 | 47.7 | |
| Range 47 – Standard | 12.5 | 5.9 | 21.2 | |
| Range 29 – Optional | 5.2 | 2.5 | 8.8 | |
| Range 18 – Optional | 2.2 | 1.0 | 3.7 | |
| Range 11 – Optional | 0.9 | 0.4 | 1.5 | |
| Range 07 – Optional | 0.3 | 0.14 | 0.51 | |
| Range 03 – Optional | 0.1 | 0.04 | 0.17 | |
| Dimensions | 14″ × 12.5″ × 14.5″ (35.5 x 32 x 37 cm) | |||
| Weight | 14 lb (6.3 kg) | |||
| Flow Accuracy | +/-3% ISO 17025 accredited certificate available | |||
| Power Supply | Input: 120V/60Hz, 240V/50Hz, or 110V/50Hz
Output: 48V DC/ 3.31A |
|||
| Power Output | 0.213 hp, 159 Watts | |||
| Maximum Fan Calibration Interval | Every 5 years or sooner depending on standard | |||
